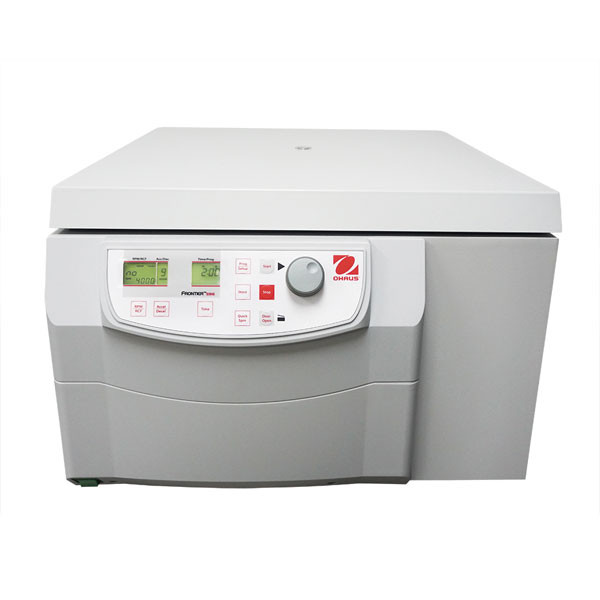

Photograph of Ohaus Frontier™ 5916 Multi Pro Centrifuge, front facing, lid closed.

Ohaus Frontier™ FC5916 and FC5916R Multi Pro Centrifuges

Name: Ohaus Frontier™ FC5916 and FC5916R Multi Pro Centrifuges
SKU: H-FC5916
Availability: InStock

SKU:

H-FC5916

Availability:

2-3 business days

$8,055.00 - $11,355.00

(No reviews yet)

The Ohaus Frontier™ 5000 Series Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with a wide range of rotors and accessories for customized use. The intuitive design of the centrifuges & accessories enable easy access to parameter settings, and quick rotation between applications. They feature automatic rotor recognition and backlit LCD. The performance of these centrifuges is propelled by German engineering, and high-quality components for reliable use. They are constructed of chemical-resistant stainless steel to ensure durability in lab use. Design features include ten acceleration and deceleration rates and selection of running time from 10 s to 99 h 59 min or continuous, quick spin. These Frontier ™ 5000 Series centrifuges are equipped with protective features, including automatic over-speed protection, imbalance detection and a self-diagnostic system to ensure reliable use and operator safety.

These FC5916 models are compatible with up to 14 optional rotors and 75 accessories. Their capacity ranges from microliter to 4 x 750 mL. They provide high-speed centrifugation (>10,000 rpm) from 0.2 mL up to 85 mL tubes. These models have improved sample processing through-put with additional rotor for blood collection tubes and standard conical tubes.

The FC5916 is air cooled and has a speed range of 200 - 16,000 rpm with a maximum g-force of 24,325 g. It measures 21.4" w x 25.6" d x 14.6" h (544 x 651 x 371 mm) and has a weight of 187 lb (85 kg) without a rotor.

The FC5916R uses the environmentally friendly R290 refrigerant* which provides a temperature range of -20 to 40°C in 1° C increments. It has a pre-cool feature that quickly lowers the temperature of rotor and chamber before a run. It has a speed range of 200 - 16,000 rpm with a maximum g-force of 26,331 g. The unit measures 28.7" w x 26.3" d x 14.6" h (728 x 667 x 370 mm)and has a weight of 260 lb (118 kg) without a rotor.

*Starting in 2026, all Ohaus Frontier™ 5000 refrigerated centrifuges switched from R452A (a synthetic F-gas) to the environmentally friendly R290, a natural propane refrigerant with a Global Warming Potential (GWP) of 0.022 (over 700X lower than R452A). Not only does this new refrigerant align with Green Lab initiatives but it is already compliant with the evolving European F-gas regulation 2024/573 and the US Environmental Protection Agency (EPA) Significant New Alternatives Policy (SNAP) Program. In addition, the redesigned refrigeration system enables a 58-82% reduction in refrigerant volume, provides higher energy efficiency and improved cooling performance. The fully sealed refrigeration system design allows for unrestricted international shipment, including air freight.*

Applications:Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing .

Literature available:

Accessories: 6 x 250 mL, FB, ID Angle Rotor (item # H-30314821), 2 x 3MTP, ID Swing Out Rotor (item # H-30314824), 6 x 85 mL RB, ID Angle Rotor (item # H-30314826), 4 x 85 mL RB, ID Hi Angle Rotor (item # H-30314827),10 x 50 mL FA, ID Angle Rotor (item # H-30314829), 6 x 50 mL RB, ID Hi Angle Rotor (item # H-30314831), 20 x 10 mL RB, ID Hi Angle Rotor (item # H-30314833), 30 x 1.5/2.0 mL, ID, Sealable Angle Rotor (item # H-30314836), 4 x 8-w PCR Strip, ID Angle Rotor (item # H-30314841), 4 x 750 mL, ID Sealable Angle Rotor (item # H-30553085), 4 x 500 mL, ID Angle Rotor (item # H-30553086),44 x 1.5/2.0 mL, ID, V2, Angle Rotor (item # H-30372718), 24 x 1.5/2.0 mL, ID, BIOSEALS V1, Angle Rotor (item # H-83041238).

NEW! Cell Culture Package: Interested in large-volume cell culture processing? Combine this FC5916 (or FC5916R) centrifuge with the new cell culture package (item # H-83041625). The package saves you up to 55% compared to buying the components separately. It includes (1) Ohaus 4 x 750 mL Swing Rotor, (4) 750 mL D98mm FB Buckets, (4) Lid Assembly for Round Bucket, (4) Ohaus 7 x 50 mL D29mm FA / conical tube racks, (4) Ohaus 17 x 15 mL D17mm FA / conical tube racks.

Frontier™ 5000 Series Multi-Pro Centrifuge Comparison:

Model	Speed Range	Temp. Range	Max. g-Force	Swing-Out Rotor Max. Capacity	Angle Rotor Max. Capacity
FC5714	200 rpm - 14,000 rpm	Air Cooled	18,624 g	4 x 200 mL	30 x 15 mL
FC5718	200 rpm - 18,000 rpm	Air Cooled	23,542 g	4 x 200 mL	6 x 85 mL
FC5718R	200 rpm - 18,000 rpm	-20° to 40° C	23,542 g	4 x 200 mL	6 x 85 mL
FC5720R	200 rpm - 20,000 rpm	-20° to 40° C	38,007 g	4 x 200 mL	6 x 85 mL
FC5816	200 rpm - 15,000 rpm	Air Cooled	21,379 g	4 x 290 mL	6 x 250 mL
FC5816R	200 rpm - 16,000 rpm	-20° to 40° C	24,325 g	4 x 290 mL	6 x 250 mL
FC5830R	200 rpm - 30,000 rpm	-20° to 40° C	65,395 g	4 x 290 mL	6 x 250 mL
FC5916	200 rpm - 16,000 rpm	Air Cooled	24,325 g	4 x 750 mL	4 x 500 mL
FC5916R	200 rpm - 16,000 rpm	-20° to 40° C	26,331 g	4 x 750mL	4 x 500 mL
FC5917RF	200 rpm - 16,010 rpm	-20° to 40° C	26,361 g	4 x 1 L	4 x 500 mL
