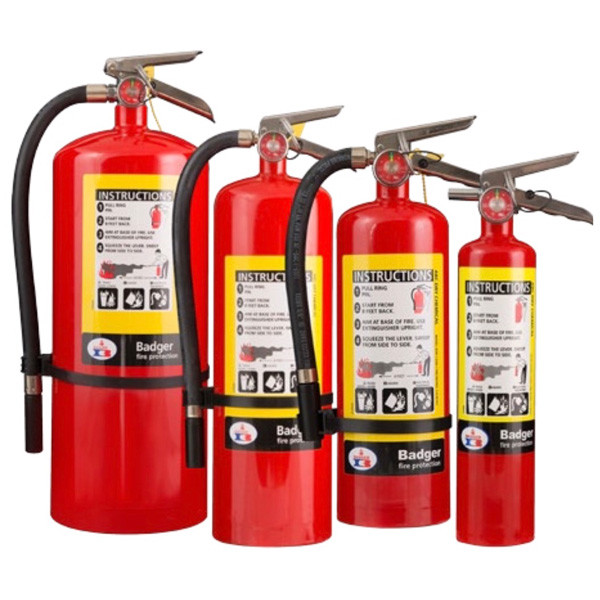

Badger Extra Multi-Purpose ABC Dry Chemical Handheld Fire Extinguishers

Product Description

Badger Extra Multi-Purpose ABC Dry Chemical fire extinguisher models are extremely versatile and ready to tackle most fires in commercial, industrial, and domestic applications.

These units feature a chrome-plated brass valve, a stainless steel handle, lever and hose band, and an internal steel siphon tube. The cylinder has a twelve year hydrostatic test requirement. These extinguishers are UL Listed and USCG Approved (when equipped with the optional bracket) and come with a 6 year manufacturer warranty.

The Safety Data Sheet (SDS) for the ABC Dry Chemical agent is available for download as is the Badger Extra ABC specification sheet.

These units come with a wall hanger hook. For vehicle brackets see item # 09675. The 2-1/2 lb units are only sold in packages of six; please contact us if you'd like to order those.

For Hi-Flow versions see item # 09603.

Specifications:

Badger Model #	B250M	B5M	B5M-B	B10M	B20M
Badger Part #	23384	23390	23463	23396	23497
Agent	2.5 lb (1.1 kg) ABC powder	5 lb (2.3 kg) ABC powder	5 lb (2.3 kg) ABC powder	10 lb (4.5 kg) ABC powder	20 lb (9.1 kg) ABC powder
UL Fire Rating	1-A:10-B:C	3-A:40-B:C	3-A:40-B:C	4-A:80-B:C	6-A:120-B:C
Operating Temperature	-40 to 120 °F (-40 to 48.9 °C)
Agent Flow Rate	.31 lb/s (.14 kg/s)	.39 lb/s (.18 kg/s)	.39 lb/s (.18 kg/s)	.51 lb/s (.23 kg/s)	.75 lb/s (.34 kg/s)
Discharge Time	9.5 seconds	14 seconds	14 seconds	22 seconds	28 seconds
Maximum Effective Range	10 to 15 ft (3.0 to 4.6 m)	12 to 18 ft (3.7 to 5.5 m)	12 to 18 ft (3.7 to 5.5 m)	16 to 20 ft (4.9 to 6.1 m)	16 to 20 ft (4.9 to 6.1 m)
Height	14.87" (37.8 cm)	15.25" (38.7 cm)	15.25" (38.7 cm)	18.94" (48.1 cm)	21.13" (53.7 cm)
Width	5.5" (14.0 cm)	7.25" (18.4 cm)	7.5" (19.1 cm)	7.75" (19.7 cm)	9.25" (23.5 cm)
Depth	3" (7.6 cm)	4.25" (10.8 cm)	4.25" (10.8 cm)	5.25" (13.3 cm)	7.25" (18.4 cm)
Shipping Weight	5.8 lb (2.6 kg)	10.4 lb (4.7 kg)	10.4 lb (4.7 kg)	18 lb (8.2 kg)	33 lb (15 kg)
US Coast Guard Classification	Type B:C Size I	Type A, Size II Type B:C, Size I	Type A, Size II Type B:C, Size I	Type A, Size II Type B:C, Size II	Type A, Size II Type B:C, Size III
Vehicle Brackets	MB-250 (Included)	MB-5	MB-5 (Included)	UB-10	UB-20
