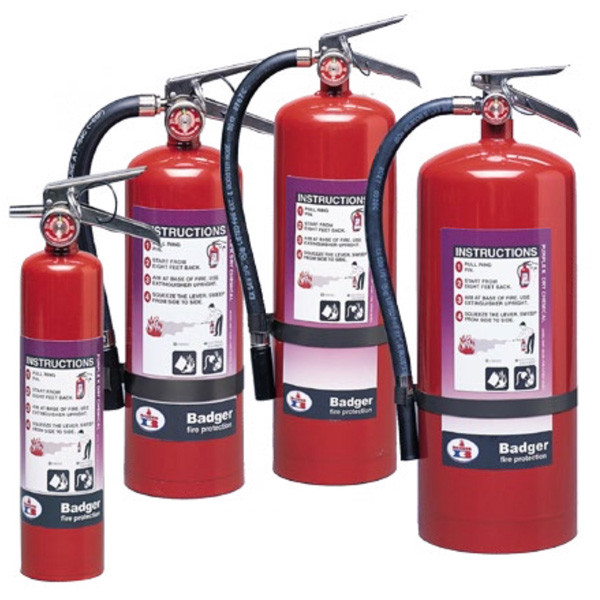

Badger Extra Purple K Dry Chemical Handheld Fire Extinguishers

Product Description

Badger Extra Purple K Dry Chemical fire extinguisher models are extremely versatile and ready to tackle flammable liquid and electrical fire hazards (Classes B and C). These extinguishers are ideal for use in industrial and commercial where flammable liquid or gas fire risks exist.

These units feature a chrome-plated brass valve, a stainless steel handle, lever and hose band, and an internal steel siphon tube. The cylinder has a twelve year hydrostatic test requirement. These extinguishers are UL Listed and USCG Approved (when equipped with the optional bracket) and come with a 6 year manufacturer warranty.

The Safety Data Sheet (SDS) for the Purple-K Dry Chemical agent is available for download as is the Badger Extra Purple K specification sheet.

These units come with a wall hanger hook. For vehicle brackets see item # 09675. The 2-1/2 lb units are only sold in packages of six; please contact us if you'd like to order those.

For Hi-Flow versions see item # 09614.

Specifications:

Badger Model #	B250P	B5P	B10P-1	B20P
Badger Part #	23485	23488	23778	23495
Agent	2.5 lb (1.1 kg) Purple-K	5 lb (2.3 kg) Purple-K	10 lb (4.5 kg) Purple-K	20 lb (9.1 kg) Purple-K
UL Fire Rating	10-B:C	30-B:C	80-B:C	120-B:C
Operating Temperature	-40 to 120 °F (-40 to 48.9 °C)
Agent Flow Rate	.31 lb/s (.14 kg/s)	.42 lb/s (.19 kg/s)	.45 lb/s (.20 kg/s)	.71 lb/s (.32 kg/s)
Discharge Time	9.5 seconds	12 seconds	22 seconds	28 seconds
Maximum Effective Range	10 to 15 ft (3.0 to 4.6 m)	12 to 18 ft (3.7 to 5.5 m)	16 to 20 ft (4.9 to 6.1 m)	25 to 30 ft (7.6 to 9.1 m)
Height	14.87" (37.8 cm)	15.25" (38.7 cm)	18.94" (48.1 cm)	21.13" (53.7 cm)
Width	5.5" (14.0 cm)	7.25" (18.4 cm)	7.75" (19.7 cm)	9.25" (23.5 cm)
Depth	3" (7.6 cm)	4.25" (10.8 cm)	5.25" (13.3 cm)	7.25" (18.4 cm)
Shipping Weight	5.8 lb (2.6 kg)	10.4 lb (4.7 kg)	17 lb (7.7 kg)	32 lb (14.5 kg)
US Coast Guard Classification	Type B:C Size I	Type B:C, Size I	Type B:C, Size II	Type B:C, Size III
Vehicle Brackets	MB-250 (Included)	MB-5	UB-10	UB-20
