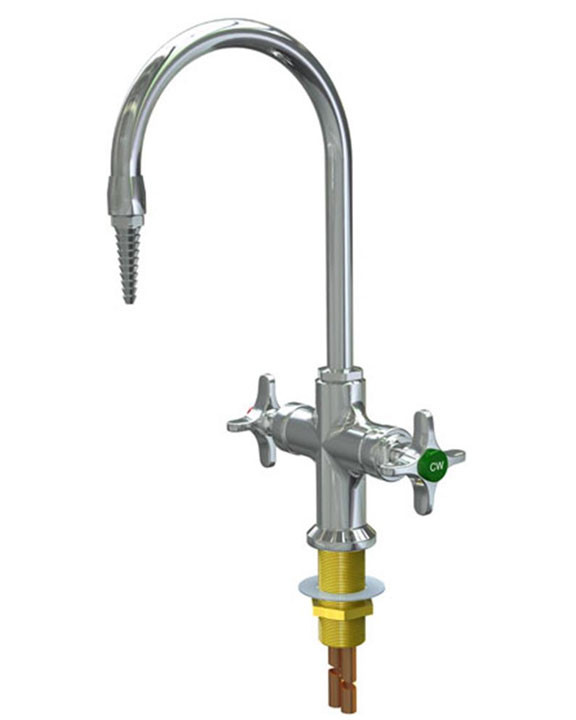

A photograph of an L412 Laboratory Mixing Faucet including the mounting shank.

L411, L412, L414 Series Laboratory Mixing Faucets, Single Hole Deck-Mounted, Chrome Finish

Item #: L412

* Gooseneck Style:

* Gooseneck width:

* Vacuum breaker:

* Handle style:

* Outlet type:

Quantity:

$210.60

Normal Availability: 1-5 business days

Product Description

The WaterSaver Faucet Co.'s L41x series of mixing faucets are single hole deck-mounted units that supply both cold and hot water. The body and handle are made of forged brass with a polished chrome-plated finish. The valve units are self-contained renewable units with replaceable stainless steel seats. Each four-arm handle features a color-coded index disc.

The standard units have a 6" rigid gooseneck. The inlet is a 1-3/16" NPT male shank with two 3/8" O.D. flexible copper tubes while the outlet is 3/8" IPS female with a removable ten-serration hose end. Each unit is fully assembled and factory tested prior to shipment.

This item is available in three standard models; a comparison of these styles is available as a PDF file.

L411 - fixed (rigid) gooseneck. When ordered with blade handles and aerator in place of the serrated hose end this is L421.
L412 - swing gooseneck. When ordered with blade handles and aerator in place of the serrated hose end this is L422.
L414- convertible rigid/swing gooseneck. When ordered with blade handles and aerator in place of the serrated hose end this is L424.

The following options are available (mix and match)

Vacuum breaker - an integrated ASSE-certified vacuum breaker (backflow preventer) which has a replaceable seat and ultra-light float cup to resist spilling at low flow. May be required by some plumbing codes; please check before ordering. (-VB)
4" wrist blade handles in place of the standard four arm handles. (-BH)
8" gooseneck instead of 6" gooseneck. (-8)
BO055 aerator (-55) OR BO127S aspirator (-127) in place of the BO140S-W serrated hose end.

Installation guidelines are available on-line and specification drawings for the L412VB and L412VB-BH are available as PDF files.

Note: Because of the number of permutations of this faucet, the full WSF part number will not appear as you select your options. However, the options you select will be in your cart, order, and receipt.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
