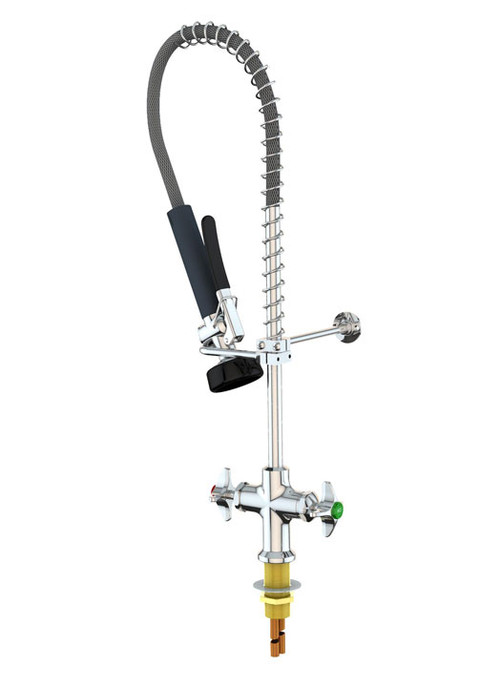

PR411 Pre-Rinse Unit, Deck Mounted, Hot/Cold Water, Chrome Finish

The WaterSaver Faucet Co.'s PR411 deck-mounted Pre-Rinse unit supplies both hot and cold water. The body is made of forged brass with a polished chrome-plated finish. The valve units are self-contained renewable units with replaceable stainless steel seats and integral check valves that prevent cross-mixing of hot and cold water. The four-arm handles are forged brass with color-coded index discs.

The pre-rinse assembly features a self-closing squeeze valve with a rubber-bound spray head, insulated handle and locking ring. The valve is mounted on a spring-loaded 39" stainless steel hose. The inlet is a 1-3/16" male shank with two 1/2" OD slipjoint connections. Furnished complete with locknut, washer and inlet fittings. Each unit is fully assembled and factory tested prior to shipment.

The following options are available:

• An L110 vacuum breaker installed on the valve outlet (required by many plumbing codes to prevent back-flow).
• 4" wrist blade handles in place of four-arm forged brass handles.

Installation guidelines are available on-line and the specification drawing is available as a PDF file. Note: This unit is not an emergency eye wash or drench hose.

This unit comes standard with red hot water and green cold water index markers on the valve handles. You may request other indexing options on the Comments line when you submit your order. This item ships in a box approximately 33" x 17" x 9" (84 x 43 x 23 cm) weighing approximately 17 lb (7.7 kg).
