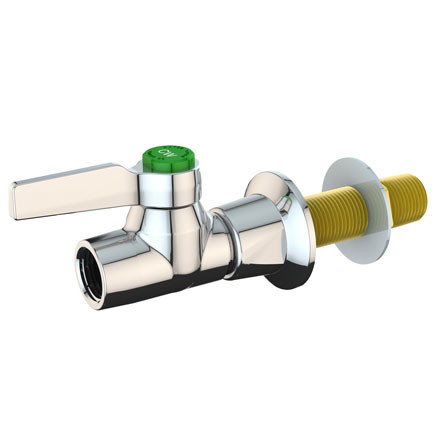

L4301-159WSA High Flow Laboratory Water Valve, Panel Mounted, Chrome Finish

The WaterSaver Faucet Co.'s L4301-159WSA is a panel-mounted high flow water valve for use on process and chilled water systems and is used for supply and return connections. The chrome-plated brass ball with molded PFTE seals design provides high flow capacity and minimizes pressure drop compared to traditional stem/seat valves like the L2800. The body, handle, and flange are made of forged brass with a polished chrome-plated finish. The 90° on/off handle features a color-coded index disc and the brass shank assembly accommodates wall thicknesses up to 1-3/4".

The inlet is 1/2" NPT male and the outlet is 1/2" IPS female compared to the L4200 series valves which are 3/8". Each unit is fully assembled and factory tested prior to shipment.

This item is designed for panel-mounting. For a deck-mount version see item L4301-121WSA. For an unmounted version see item L4301 (also available with a quick-connect outlet as item L4303).

A specification drawing is available for download and installation guidelines are available on-line.

Small orders for this valve ship from New Jersey. Larger orders ship from the factory in Chicago, IL.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
