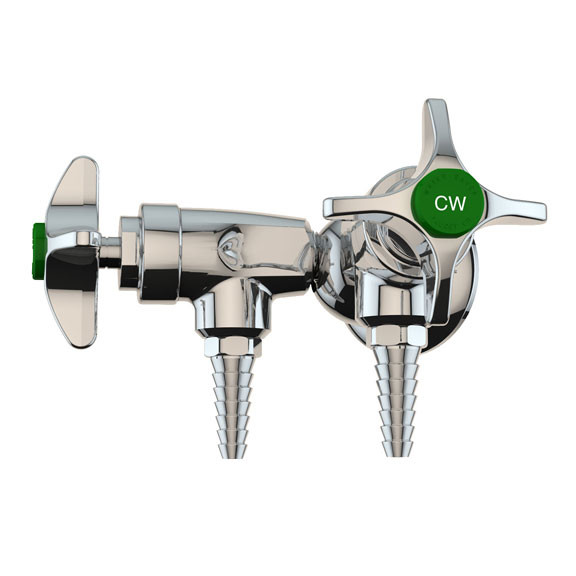

L3100-141 Series Double Laboratory Water Valves, Wall Mount

The WaterSaver Faucet Co.'s L3100-141 series features two L3100 laboratory water valves in one wall-mounted fixture. The valve bodies and handles are made of forged brass with a polished chrome-plated finish. The valve units are self-contained renewable units with replaceable stainless steel seats. The valve outlets are 3/8" IPS female with removable anti-splash seven-serration hose ends. The four-arm handles feature a color-coded index disc for cold water. Each unit is fully assembled and factory tested prior to shipment.

This series of valves is available in two configurations:

• The L3100-141FT has a 3/8" NPT female inlet and is designed for installation on vertical surfaces where there is no access behind the wall during installation. The flange is threaded onto a nipple stubbed out from the wall and then the threaded escutcheon is then backed up to the wall to secure the valve and conceal the pipe.

• The L3100-141WSA is identical but has a 3/8" IPS mounting shank, locknut and washer and is designed for installation on horizontal or vertical surfaces were there is access behind the wall during installation.

Installation guidelines are available on-line and a specification sheet for the L3100-141FT is available as a PDF file.

An additional configuration is the L3100-131 series which are designed for under-shelf or overhead mounting.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
