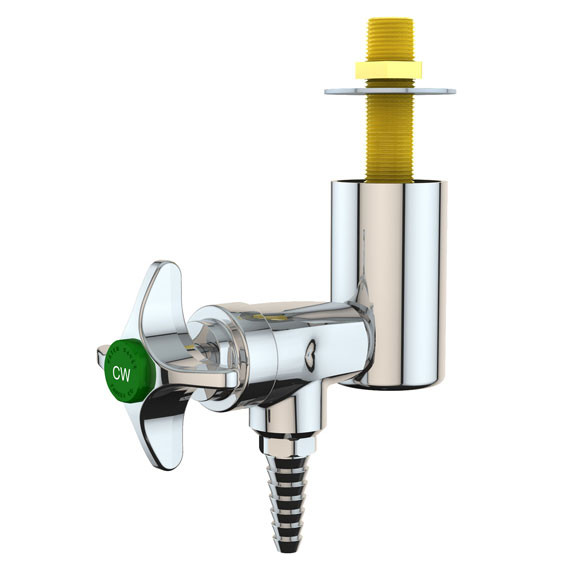

L3100-131 Series Laboratory Water Valves, Overhead Mount

The WaterSaver Faucet Co.'s L3100-131 series features a turret for mounting underneath a reagent shelf and comes with your choice of one or two L3100 laboratory water valves. The valve body and handle are made of forged brass with a polished chrome-plated finish. The valve unit is a self-contained renewable unit with a replaceable stainless steel seat. The four-arm handle features a color-coded index disc for cold water.

The inlet is furnished with a pre-assembled 3/8" NPT mounting shank, locknut, and washer. The valve outlet is 3/8" IPS female with a removable anti-splash seven-serration hose end. Each unit is fully assembled and factory tested prior to shipment

The following two configurations are available:

• L3100-131WSA - Turret with one L3100 valve.
• L3100-132SWSA - Turret with two L3100 valves 180° apart

Installation guidelines are available on-line and a specification sheet for the L3100-131WSA is available as a PDF file.

An additional configuration is the L3100-141 series which are wall-mounted double water valves.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
