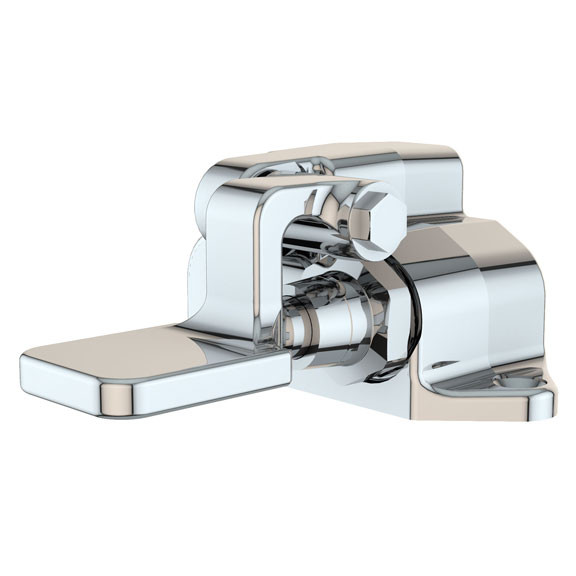

L3050 Foot-Operated Single Valve, Floor Mounted

The WaterSaver Faucet Co.'s L3050 Foot-Operated Single Valve is a floor-mounted unit which supplies either hot or cold water. The body is made of forged brass with a polished chrome-plated finish. The valve unit is a self-contained renewable unit with a replaceable stainless steel seat. The pedal is cast aluminum and is mounted on a hinged bracket.

The inlet and outlet are 1/2" NPT male. Each unit is fully assembled and factory tested prior to shipment.

Two standard versions are available: the standard L3050 and the L3050LP which is identical except that it has extended pedals for ledge mounting.  Two options are available by special order: a rough chrome plated finish, part number L3050RCP, and tin lining for use with pure water, part number L3050TL (contact us for pricing).

Installation guidelines are available on-line and a specification drawing is available as a PDF file.

The L3001 is similar but is a dual pedal/valve unit capable of mixing hot and cold water.
