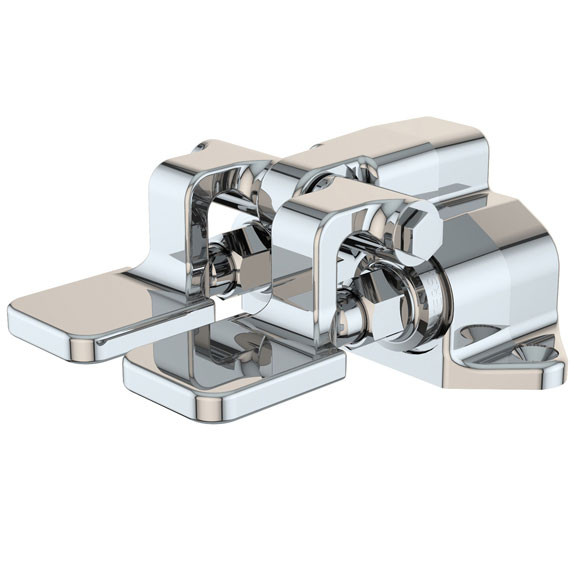

L3001 Foot-Operated Mixing Valve, Floor Mounted

The WaterSaver Faucet Co.'s L3001 Foot-Operated Mixing Valve is a floor-mounted unit which supplies both hot and cold water. This unit can be combined with a deck-mounted mixing faucet to create a faucet with both hand and foot controls; see item # L2211 for an example. The body is made of forged brass with a polished chrome-plated finish. The valve units are self-contained renewable units with replaceable stainless steel seats. The pedals are cast brass and are mounted on a hinged bracket.

The two inlets and single outlet are 1/2" NPT male. Each unit is fully assembled and factory tested prior to shipment.

Two standard versions are available: the standard L3001 and the L3001LP which is identical except that it has extended pedals for ledge mounting.  Either is also available with a rough chrome plated finish, part number L3001RCP by special order (contact us for pricing).

Installation guidelines are available on-line and a specification drawing is available as a PDF file.

The L3050 is similar but has a single pedal and valve for control of a single water input.
