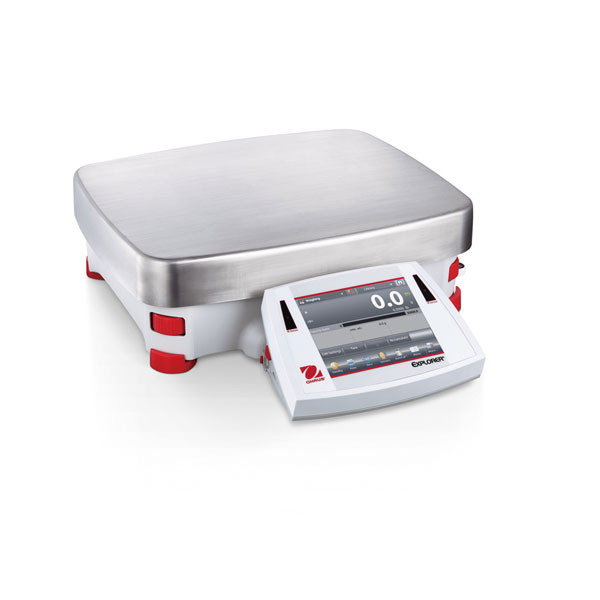

Ohaus Explorer™ High Capacity Balances

Product Description

These Ohaus Explorer™ High Capacity NTEP Balances meet or exceed the Class II accuracy requirements in accordance with NIST Handbook 44 and Canada’s Weights and Measures Regulations. Certificate of Conformance Number 12-012 was issued under the National Type Evaluation Program (NTEP) of the National Conference on Weights and Measures. Notice of Approval AM-5847 was issued by Measurement Canada, an Agency of Industry Canada.

These balances are extremely accurate and durable, and are ideal for laboratory and industrial environments. The models have capacities of 12,000 g, 24,000 g or 35,000 g with a readability of 0.1 g. The precision-machined, solid metal weighing cells coupled with Ohaus' signature AutoCal™ internal calibration system ensure accurate, reproducible measurements. The die-cast metal base, 14.8" x 12.2" (377 mm x 311 mm) stainless steel pan and thick metal housing withstand daily wear and tear. Each unit features a detachable terminal with a large (5.7" diagonal), full-color VGA graphic display and programmable IR sensor. The optional adjustable rolling feet and optional rechargeable battery add efficiency and ease for using these balances in multiple environments.

Typical application modes include weighing, parts counting, percent weighing, checkweighing, dynamic/animal weighing, filling, totalization/statistics, formulation, density determination, ingredient costing and SCQ. Weigh displays include Gram, Kilogram, Pound, Ounce, Ounce Troy, Grain, Carat and dwt.

These balances are powered with an AC adaptor (included). Communication via RS232, USB Host, USB Device, optional Ethernet (accessory sold separately), GLP/GMP data output with real-time clock.

Base Housing Dimensions 4.7" h x 14.8" w x 17.4" d (120 x 377 x 443 mm). Balance Weight 22 lb (10 kg).

For non-certified balances see H-EXPLORER-HC.

Literature available:

Accessories: A variety of accessories and replacement parts are available. These include a rechargeable battery (item # H-3004129), a wheel kit (item # H-30041470), a column kit (item # H-30078082), anti-theft device (item # H-80850043), portable dot-matrix printer (item # H-30064203), 9 m RS422 cable (item # H-30078078), STP-103 Thermal Printer (item # H-80251992), ST103 Cable (item # H-80252581), Ethernet interface kit (item # H-83021082), AD7-RS Auxiliary Display (item # H-AD7-RS), RS422 Cable Extension (item # H-83021083), 25Pin-9 Pin, PC-TxxP Cable (item # H-80500524), RS232 IBM 9P Cable (item # H-80500525), A to B USB cable (item # H-83021085), Winwedge Software (item # H-80850080), Foot Switch Kit (item # H-83021086) and In-Use Terminal Cover (item # H-83033633).

WARNING: OHAUS products can expose you to chemicals including the chemicals listed in this Table, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

These and other Proposition 65 chemicals may be present only in residual amounts, or contained internally in OHAUS equipment, or encapsulated in another material where exposure is unlikely or negligible. This warning is being provided out of an abundance of caution.
