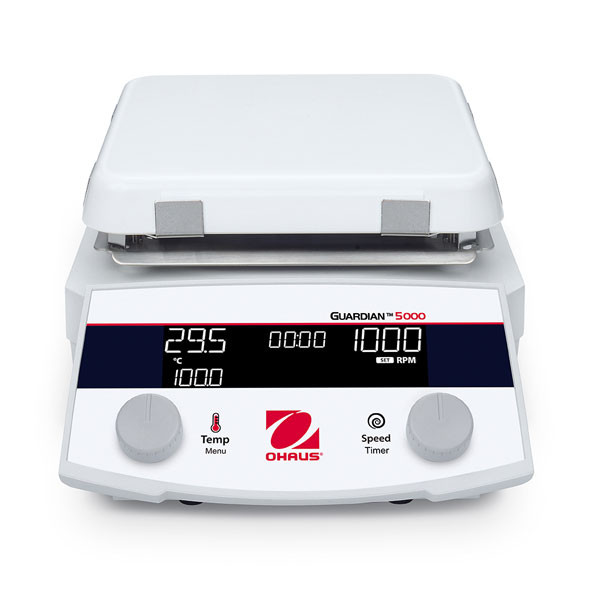

Ohaus Next Generation Guardian™ 5000 Hotplate Stirrers

These Ohaus Next Generation Guardian™ 5000 hotplate stirrers are designed for safety and versatility across research, academia and industrial settings. They offer several unique features that make the hotplates amongst the safest in the industry. Ohaus' signature SafetyHeat™ allows the user to adjust the Set Temperature upper limit of the Top Plate, SafetyHeat™ monitors the electronics and shuts off heating before an overtemperature condition occurs and the Run Dry Protection System shuts off heating and sounds alarms if a probe-controlled heating is running without the probe tip submersed in the heating medium. The Run Time Mode and optional Splash Shield provide increased safety. The SmartRate™ system accurately controls heating & stirring from fast and intensive to soft and precise.

The hotplate provides stable temperature control from ambient+5°C up to 550°C depending on the model. The stirrer provides precise stirring from 50 to 1800 rpm with a maximum capacity of 20 L (7" x 7" plate) or 22 L  (10" x 10" plate).

An intuitive user interface featuring a large, bright LCD screen with white characters & knob button(s), allows for user friendly operation. An RS232 port is included for remote control or data logging.

Available in two sizes:

1. 7” x 7” (17.8 x 17.8 cm) ceramic top plate with a capacity of 20 L. Overall dimensions: 12.94" l x 8.69"w x 4.56" h (12.2 x 22.3 x 30.9 cm). Net Weight 10.1 lb (4.6 kg).

2. 10” x 10” (25.4 x 25.4 cm) ceramic top plate with a capacity of 22 L. Overall dimensions: 15.84" l x 11.28" w x 4.65" d (40.2 x 28.7 x 11.8 cm). Net Weight 14.8 lb (6.7 kg).

All models are also available as a package (Kit-1) that contains a temperature probe and a probe holder kit.

Literature available: Ohaus Guardian 5000 Data Sheet, Ohaus Guardian Comparison Guide.

Accessories: A variety of accessories are available including: temperature probes (item # H-23212), RS232-Ethernet Interface Kit (item # H-30304102), RS232-USB Interface Kit (item # H-30304101), Probe Holder Kit (item # H-30973298), Ultra Flex Support Kit (item # 22276), Support Rod and Clamp Kit (item #23260), Spinbars (item # H-23211), Stir bar retriever (item # H-30500598), Clamp holder (item # 22025), Vessel (chain) clamps (item # H-30500597), Column clamps (item # 22153), Nester clamps (item # 22152), Splash Shields (item # H-Splash Shield), sectional vial blocks (item # H-23201), sectional test tube blocks (item # H-23202), vial uniblocks (item # H-23203), test tube uniblocks (item # H-23204).

Related Products:  Guardian™ 7000 hotplate-stirrers (item # H-e-G71HS), Guardian™ 7000 round top hotplate-stirrer (item # H-e-G71HSRDM), Guardian™ 5000 stirrer (item # H-e-G52ST07C), Guardian™ 5000 hotplate (item # H-e-G52HP07C), Guardian™ 5000 round top hotplate-stirrer (item # H-e-G52HSRDA), Guardian™ 3000 hotplate-stirrers (item # H-e-G31HS), Guardian™ 3000 round top hotplate-stirrers (item # H-e-G31HSRDM), Guardian™ 2000 hotplate-stirrers (item # H-e-G21HS), Guardian™ 2000 stirrers (item # H-e-G21ST), Guardian™ 2000 hotplates (item # H-e-G21HP).

Note: These hotplate-stirrers replace the older Ohaus Guardian 5000 hotplate-stirrers, e-G51HS07C and e-G51HS10C.

WARNING: OHAUS products can expose you to chemicals including the chemicals listed in this Table, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. These and other Proposition 65 chemicals may be present only in residual amounts, or contained internally in OHAUS equipment, or encapsulated in another material where exposure is unlikely or negligible. This warning is being provided out of an abundance of caution.
