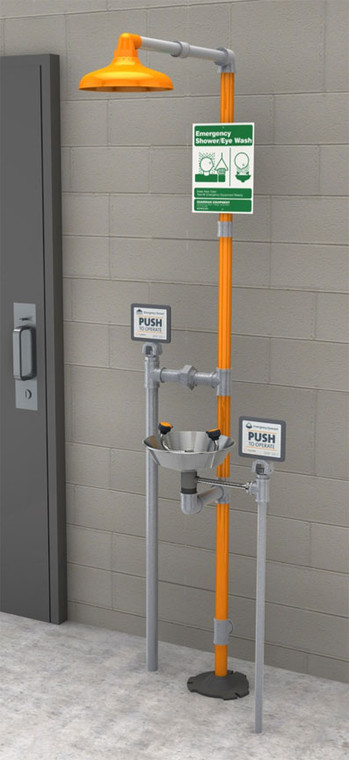

- Guardian GFR1902 Freeze-Resistant Safety Station with Eyewash, Plastic Shower Head
)
Product Description
The Guardian Equipment GFR1902 combination safety shower and eye wash is freeze resistant because the valves and supply line are buried below frost depth and the system drains completely after use. You must specify the valve bury depth at the time of order. This unit is ideal for extreme cold and outdoor locations. The GFR1909 is similar but the eye wash has four spray heads to cover the full face as well as the eyes. The GFR3000 series of products are electrically heated and insulated systems for those that need an even more robust cold-weather solution.
| Features | Options |
|
Application: Freeze-resistant combination eyewash and shower safety station. Freeze-resistant valves and supply lines are buried below frost line to protect against freezing. Unit is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water; see the Application Note in the right column for more information. Shower Head: 10" diameter orange ABS plastic w/ 20 GPM flow control. Shower Valve: 1-1/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Specify bury depth of valve when ordering. Spray Head Assembly: Two GS-Plus™ spray heads. Each spray head has a “flip top” dust cover and internal flow control. Eyewash Bowl: 11-1/8" diameter stainless steel. Eyewash Valve: 3/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Specify bury depth of valve when ordering. Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance. Supply: 3/4” NPT female inlet (eyewash valve) and 1-1/4” NPT male inlet (shower valve). Waste: 1-1/4" NPT female outlet. Sign: Furnished with ANSI-compliant identification sign, item # 250-008G. Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment. |
AP250-015 Modesty curtain for mounting on safety station. GRN Green ABS plastic bowl. SSH Stainless steel shower head. YEL Yellow ABS plastic bowl. Application Note An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: GFR1902 specification sheet w/ measured drawings, parts list and assembly instructions, and written specifications (Word format).
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. Approximate shipping weight is 83 pounds (37.6 kg). This item normally ships ground freight. Delivery to residential addresses is not recommended and may incur additional accessorial fees. In addition, extra length surcharges will usually apply for bury depths over two feet; these can be rather substantial, especially during peak shipping periods such as the holiday season. We will contact you if these apply when we confirm your order.
Warranty Information
2-year manufacturer limited warranty.
