- Guardian G1766 Eye/Face Wash, Recess Deck Mounted, Ball Valve with Flag Handle
)
Product Description

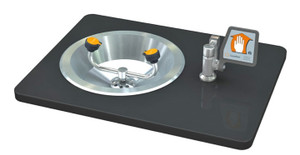

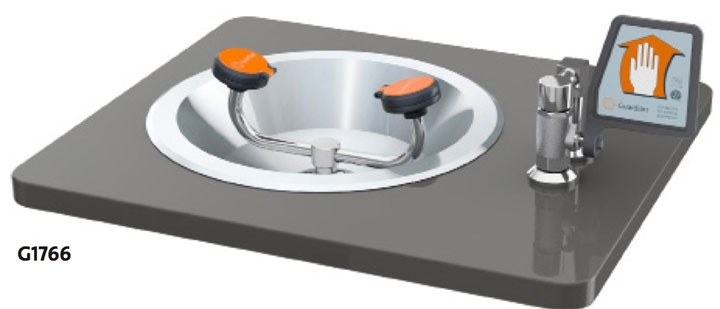

The Guardian Equipment G1766 includes a bowl which is mounted directly into your existing countertop and is activated with a flag handle. The G1765 is similar except the activating mechanism is a push-down valve. The G1755 is also similar except the bowl sits above the bench surface (like a vessel sink). The G1808 is identical except it has two smaller GS-Plus™ spray heads which only provide eye wash capability.
| Features | Options |
|
Application: Eye/face wash for recessed mounting in countertop. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face. Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS brass stay-open ball valve. Valve is mounted above counter and activated by flag handle. Bowl: 13" diameter flanged stainless steel bowl for recessed mounting in countertop. Furnished with all hardware necessary for installation in counter. Supply: 1/2" NPT male inlet. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. |
T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection. TP 1 1/2" OD chrome plated brass tailpiece. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: G1766 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.
All Guardian items are manufactured in the USA. This item weighs approximately 11 pounds (5.0 kg).
Warranty Information
2-year limited manufacturer warranty.
