- Guardian G1727 Eyewash, WideArea™ Eye/Face Wash, Recess Deck Mounted, Push-Down Valve
)
Product Description

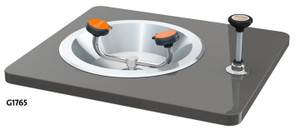

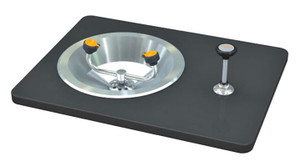

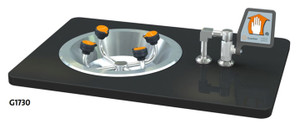

The Guardian Equipment G1727 includes a bowl which is mounted directly into your existing countertop and is activated with a push-down valve handle. The G1730 is similar except the activating mechanism is a flag handle. The G1765 is similar but has two FS-Plus™ spray heads to wash the eyes and face as is the G1810 which has two smaller GS-Plus™ spray heads which wash only the eyes.
| Features | Options |
|
Application: WideArea™ eye/face wash for recessed mounting in countertop. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face. Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS brass stay-open ball valve. Valve is mounted below counter and activated by push-down knob. Bowl: 13" diameter flanged stainless steel bowl for recessed mounting in countertop. Furnished with all hardware necessary for installation in counter. Supply: 1/2" NPT male inlet. Waste: 1 1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. |
T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection. TP 1 1/2" OD chrome plated brass tailpiece. VR - This unit is available in a vandal-resistant version that ideal for use in schools and other areas where equipment may be subject to abuse. All threaded connections are secured with set screws or cement to prevent disassembly and tougher spray heads are used. Available by special order only; please inquire. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes. |
Documentation available: G1727 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head, 150-014E-2 cast aluminum waste receptor.
All Guardian items are manufactured in the USA. This item weighs approximately 10 pounds (4.5 kg).
Warranty Information
2-year limited manufacturer warranty.
