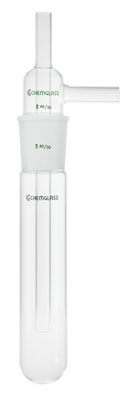

A photograph of a cg-4514 vacuum trap, 2 piece, straight inlet w/ standard taper joint.

Vacuum Trap, 2 piece, Straight Inlet w/ Standard Taper Joint

SKU:
CG-4514
Availability:
1-3 business days
$48.00 - $291.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This two piece trap is connected with a ground glass joint to facilitate cleaning. This trap has a straight inlet and is for use in the removal of undesired vapors in the vacuum system by condensation. The bottle body length is measured below the joint.  For a similar item with a 90° top inlet tube see item # CG-4516.

Item # Joint size Bottle OD x Length (mm) Inner and Side Tube OD (mm)
CG-4514-01 29/42 32 x 200 10
CG-4514-04 34/45 38 x 225 13
CG-4514-07 40/50 45 x 250 16
CG-4514-10 50/50 54 x 275 25
CG-4514-14 55/50 60 x 300 30
Additional Information
Manufactured in:
USA
