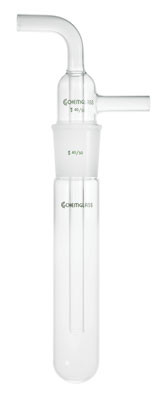

A photograph of a cg-4516 vacuum trap, 2 piece, 90° inlet.

Vacuum Trap, 2 piece, 90° Inlet

Item #: CG-4516

* Size:

Quantity:

$137.50

Normal Availability: 1-3 business days

Product Description

This two piece trap has a 90° top inlet tube and is connected with a ground glass joint to facilitate cleaning. This trap is for use in the removal of undesired vapors in the vacuum system by condensation. It is similar to the CG-4514 which has a straight top inlet tube. The bottle body length is measured below the joint.

Item #	Joint size	Bottle OD x Length (mm)	Inner and Side Tube OD (mm)
CG-4514-01	29/42	32 x 200	10
CG-4514-04	34/45	38 x 225	13
CG-4514-07	40/50	45 x 250	16
CG-4514-10	50/50	54 x 275	25
CG-4514-14	55/50	60 x 300	30

These traps use the same bottom body as the CG-4514; see that item detail page to purchase replacements.
