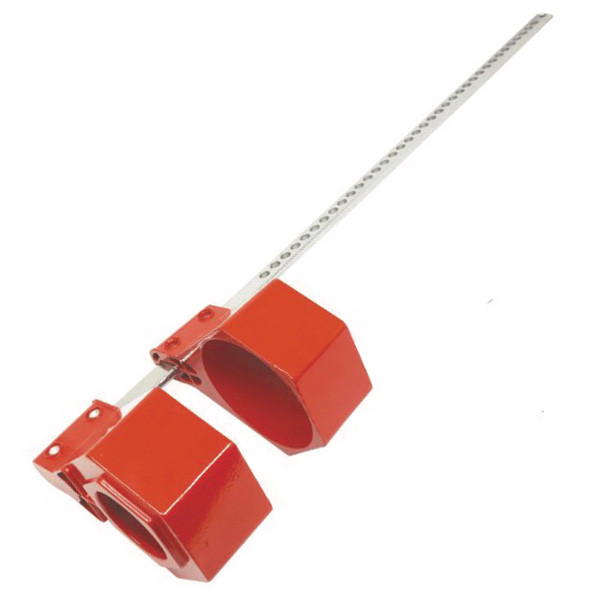

A photograph of a red 07162 blind flange lockout device.

Blind Flange Lockout Devices

Item #: 07162

* Size:

Quantity:

$52.00

Normal Availability: 1-2 business days

Product Description

These blind flange lockout devices feature fully coated aluminum construction and a hardened steel rod. They work by fully concealing flange bolts, preventing access to the blind until all work has been completed. They are available in three sizes (see table below) and are adjustable to cover pipe diameters from 1/2" to 24" (1.3 to 61 cm). Each accommodates padlocks with shackle diameters up to 1/4" (6.35 mm) and have a temperature range of -40 to 200 °F (-40 to 93 °C).

See the last picture above for a dimension diagram indicating (A) and (B):

Size	Item #	Nut Diameter (A)	Fits Pipe Diameter (B)
Small	07162-S	3/4" to 1-1/8" (1.9 to 2.9 cm)	1/2" to 3" (1.9 to 7.6 cm)
Medium	07162-M	1-1/4" to 1-7/8" (3.2 to 4.8 cm)	3-1/2" to 12" (8.9 to 30.5 cm)
Large	07162-L	2" to 2-3/4" (5.1 to 7.3 cm)	14" to 24" (35.6 to 61 cm)

Padlocks (item # 07023) and tags are sold separately.
