Ohaus Adventurer™ Precision Balances

Product Description

The Ohaus Adventurer™ Precision Balances are durable with a large weighing surface, space-saving draft shield design and full housing in-use cover making them ideal for laboratory, education and industrial environments. Capacities range from 220 g to 8,200 g with readability from 0.001 g to 0.1 g. Each unit features a 4.3” full-color VGA graphic display and icon-driven application software that features 9 unique application modes.

Models are available with Ohaus' signature InCal™ internal calibration system or with external calibration (model numbers AX.../E). NTEP Certified and Measurement Canada Approved models which meet the Class I or Class II accuracy requirements in accordance with NIST Handbook 44 and Canada’s Weights and Measures Regulations are also available (models numbers EX..N). Draft Shields are supplied standard for models with 1 mg (0.001 g) readability.

Typical application modes include weighing, parts counting, percent weighing, checkweighing, dynamic/animal weighing, totalization/statistics, formulation, density determination and display hold. Weigh displays include Gram, Milligrams, Newton, Ounce, Ounce Troy, Pennyweight, Grain and Carat. Certified models have display units of milligrams, grams, ounces, troy ounce, grain and dwt.

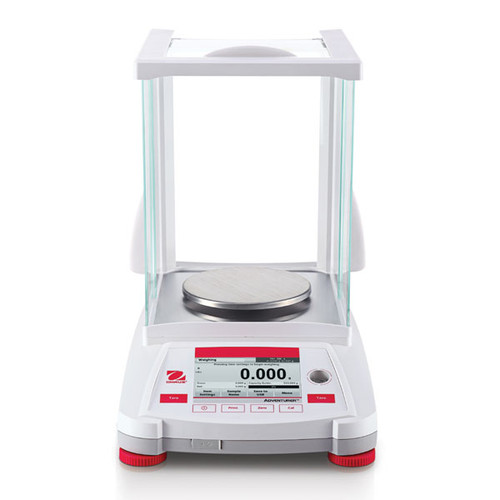

These balances have a metal base, ABS top housing, a 3.5" / 90 mm diameter stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door (for models with 0.001 g readability), illuminated up-front level indicator, integral weigh below hook and security bracket. They are powered with an AC adaptor (included). Communication is via RS232, USB Host, USB Device (included), GLP/GMP data output with real-time clock. The upgraded operating system provides a three level user management function that ensures data security and data traceability requirements.

Base Housing Dimensions 13.39” h x 13.”93 w x 9.05” d (340 x 354 x 230 mm). Balance Weight 11.3 lb (5.1 kg).

Specifications	AX223	AX223/E	AX223N/E	AX423	AX423E	AX423N	AX423N/E
Capacity x Readability(g)	220 g x 0.001 g	220 g x 0.001 g	220 g x 0.001 g	420 g x 0.001 g	420 g x 0.001 g	420 g x 0.001 g	420 g x 0.001 g
Calibration	InCal™	External	External	InCal™	External	InCal™	External
Class/Verification Interval	N/A	N/A	I / 0.01 g	N/A	N/A	II / 0.01 g	II / 0.01 g
Draft Shield	Yes
Pan Size	5.1" (130 mm) diameter

Specifications	AX523	AX523/E	AX523N/E	AX623	AX623/E	AX623N/E
Capacity x Readability(g)	520 g x 0.001 g	520 g x 0.001 g	520 g x 0.001 g	620 g x 0.001 g	620 g x 0.001 g	620 g x 0.001 g
Calibration	InCal™	External	External	InCal™	External	External
Class/Verification Interval	N/A	N/A	II / 0.01 g	Class/Verification Interval	N/A	II / 0.01 g
Draft Shield	Yes
Pan Size	5.1" (130 mm) diameter

Specifications	AX422/E	AX622	AX622N/E	AX822/E	AX1502	AX1502/E	AX1502N/E	AX2202	AX2202/E
Capacity x Readability(g)	420 g x 0.01 g	620 g x 0.01 g	620 g x 0.01 g	820 g x 0.01 g	1520 g x 0.01 g	1520 g x 0.01 g	1520 g x 0.01 g	2200 g x 0.01 g	2,200 g x 0.01 g
Calibration	External	InCal™	External	External	InCal™	External	External	InCal™	External
Class/Verification Interval	N/A	N/A	0.1 g	N/A	N/A	N/A	0.1 g	N/A	0.1 g
Draft Shield	Not Available
Pan Size	7.7” × 6.9” (195 mm × 175 mm)

Specifications	AX2202N/E	AX4202	AX4202/E	AX4202N/E	AX5202	AX6202	AX6202/E	AX6202N/E
Capacity x Readability(g)	2,200 g x 0.01 g	4,200 g x 0.01 g	4,200 g x 0.01 g	4,200 g x 0.01 g	5,200 g x 0.01 g	6,200 g x 0.01 g	6,200 g x 0.01 g	6,200 g x 0.01 g
Calibration	External	InCal™	External	External	InCal™	InCal™	External	External
Class/Verification Interval	0.1 g	N/A	N/A	II / 0.1 g	N/A	N/A	N/A	II / 0.1 g
Draft Shield	Not Available
Pan Size	7.7” × 6.9” (195 mm × 175 mm)

Specifications	AX2201/E	AX4201	AX4201/E	AX8201	AX8201/E	AX8201N/E	AX12001	AX12001/E	AX12001N/E
Capacity x Readability(g)	2,200 g x 0.1 g	4,200 g x 0.1 g	4,200 g x 0.1 g	8,200 g x 0.1 g	8,200 g x 0.1 g	8,200 g x 0.1 g	12,000 g x 0.1 g	12,000 g x 0.1 g	12,000 g x 0.1 g
Calibration	External	InCal™l	External	InCal™l	External	External	InCal™	External	External
Class/Verification Interval	N/A	N/A	NA	N/A	N/A	II / 1 g	N/A	N/A	II / 1 g
Draft Shield	Not Available
Pan Size	7.7” × 6.9” (195 mm × 175 mm)

Literature available:

Accessories: A variety of accessories and replacement parts are available. These include an anti-theft device (item # H-80850043), portable dot-matrix printer (item # H-30064203), dust cover (item # H-30093334), STP-103 Thermal Printer (item # H-80251992), ST103 Cable (item # H-80252581), AD7-RS Auxiliary Display (item # H-AD7-RS), 25Pin-9 Pin, PC-TxxP Cable (item # H-80500524), RS232 IBM 9P Cable (item # H-80500525), A to B USB cable (item # H-83021085), SP In-Use Terminal Cover w/o Draftshield (item # H-30111777) and SP In-Use Terminal Cover with Draftshield (item # H-30111792) .
