- Guardian GBF1721 Barrier-Free WideArea™ Eye/Face Wash, Wall Mounted, Stainless Steel Bowl and Skirt
)
Product Description

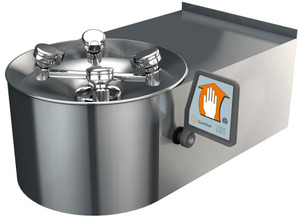

The Guardian Equipment GBF1721 wall-mounted emergency eye and face wash is activated by pushing a flag handle that stays open until manually shut. This unit is sized to comply with the Americans With Disabilities Act (ADA) in meeting the needs of wheelchair users. A vandal-resistant version of this unit is available as item # GBFVR1721. Other ADA-compliant eye/face washes include the pedestal-mounted GBF1704, the wall-mounted GBF1724 (which is similar the G1721 but lacks the skirt), and the recess-mounted GBF1735DP. The closest non-ADA equivalent is the G1721, however we encourage users to consider universal design principles when selecting safety equipment even if there is no current need.
| Features | Options |
|
Application: Barrier-free WideArea™ eye/face wash for wall mounting. Bowl is lowered and extended to permit access by wheelchair user. Profile of unit is “flattened” to comply with maximum height and knee clearance requirements. Unit has stainless steel bowl and wraparound skirt to conceal valve, drain and piping. ADA Compliance: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions). Spray Head Assembly: Four GS-Plus spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Bowl: 11-1/2" diameter stainless steel. Mounting: Bowl and skirt unit has welded stainless steel bracket for wall mounting. Supply: 1/2" NPT female inlet. Waste: 1-1/2" OD chrome plated brass tailpiece. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment. |
HS Auxiliary hand-held drench hose for rinsing eyes, face or body. T Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: GBF1721 specification sheet w/ measured drawings, installation, operation and maintenance guide, and written specifications (Word format).
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. Approximate shipping weight is 24 lb (9.1 kg). The freight class is 85.
Warranty Information
2-year limited manufacturer warranty.
