Guardian G1893 Eyewashes, Deck Mounted, 90º Swivel, All-Stainless Steel, Right and Left Hand Mounting

Product Description

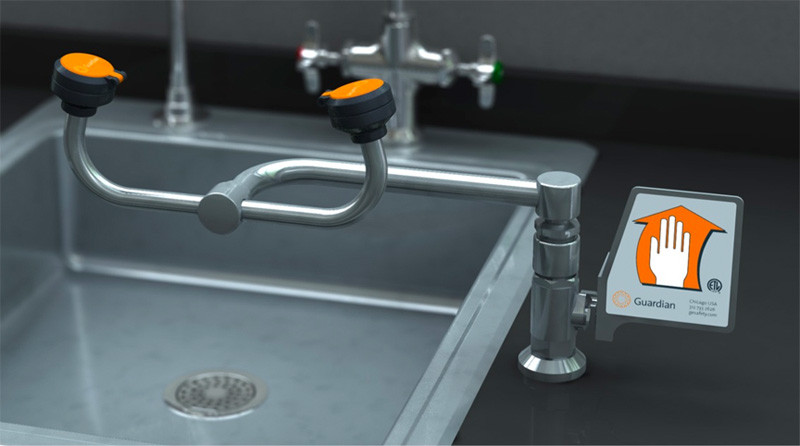

The Guardian Equipment G1893 all stainless-steel eyewash mounts on the countertop to the side of your existing sink and is activated by a push handle. Available in right and left-handed configurations; sink is not included. Similar models are the G1805 which uses an Autoflow™ activation mechanism and the G1806 which is a more affordable non-stainless steel version of the G1893.

Features

Options

Application: All-stainless steel eyewash for mounting on counter next to sink. Spray heads swivel 90 degrees from storage to operational position. Unit is constructed entirely in stainless steel for corrosion resistance.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals.

Mounting: Unit is mounted on right side of sink. Furnished with locknut and washer for securing unit to countertop.

Construction: Type 316 stainless steel.

Supply: 1/2" NPT male inlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

LH Left hand mounting.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.

Documentation available: G1893 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed) and AP470-001 replacement GS-Plus spray head.

All Guardian items are manufactured in the USA. Weight: 7 lb (3.2 kg).
