- Guardian G1814 Eyewash, Wall Mounted, Stainless Steel Bowl
)
Product Description

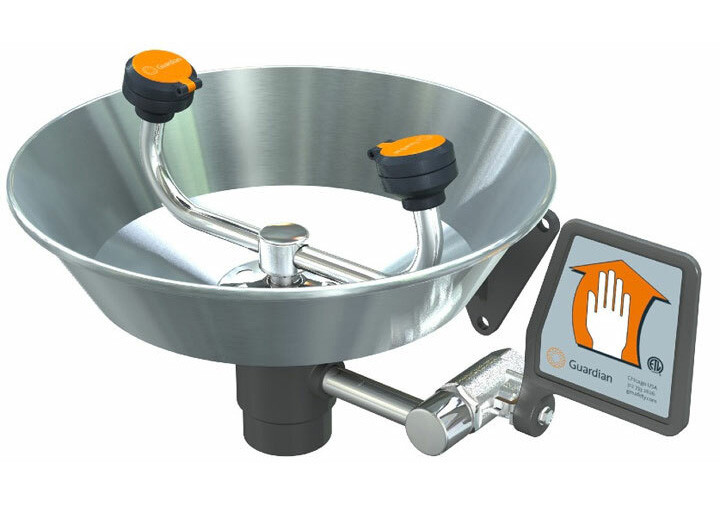

The Guardian Equipment G1814 features a rugged stainless steel bowl. Similar models are the G1814P which is identical except it comes with an orange, yellow or green plastic bowl and the G1724 which features four GS-Plus™ spray heads rather than two for complete rinsing of the eyes and face. For an all-stainless wall-mount model see the G1891.
| Features | Options |
|
Application: Eyewash for wall mounting. Two GS-Plus™ spray-type spray heads deliver a flood of water for rinsing eyes. Spray head assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Bowl: 11-1/8" diameter stainless steel. Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish. Supply: 1/2" NPT female inlet. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality assurance: Unit is completely assembled and water tested prior to shipment. Warranty: Two year limited manufacturer warranty. |
BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated. NOTE - the G1814 and G1814BC are different units. There is not currently a retrofit kit to convert a G1814 into a G1814BC. HS Auxiliary hand-held drench hose for rinsing eyes, face or body. T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection. TP 1 1/2" OD chrome plated brass tailpiece. VR - This unit is available in a vandal-resistant version that ideal for use in schools and other areas where equipment may be subject to abuse. All threaded connections are secured with set screws or cement to prevent disassembly and tougher spray heads are used. Available by special order only; please inquire. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes. |
Documentation available: G1814 specification sheet w/ measured drawings, parts list, and written specifications (Word format). The G1814BC has its own specification sheet w/ measured drawing and written specifications as well.
Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head, 150-014E-2 cast aluminum waste receptor.
All Guardian items are manufactured in the USA. The G1814 ships in a box approximately 14" x 14" x 12" (35.6 x 35.6 x 30.5 cm) weighing approximately 8 pounds (3.6 kg). The G1814BC ships in a box approximately 14" x 14" x 20" (35.6 x 35.6 x 51 cm) weighing approximately 12 pounds (5.5 kg).
Warranty Information
2-year limited manufacturer warranty.
