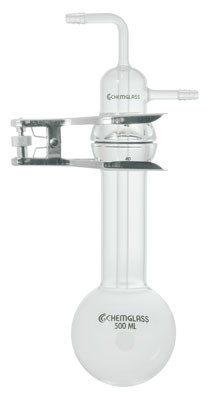

Vacuum Trap with 40 mm O-ring joint

This Vacuum Trap is similar to item CG-4529-01 and is designed for large volume solvent removal by vacuum. This vacuum trap has a 40 mm o-ring joint to connect the trap body to the stopper. The O-ring joint provides for a vacuum-tight, grease-free seal and permits the trap body to be easily disconnected from the stopper for cleaning.  The serrated hose connections are 10 mm at the smallest seration and 11 mm at the largest serration.

This trap comes complete with a stopper, trap body, a CG-305-226 Viton O-ring and CG-150-09 S.S. pinch clamp.

The 500 mL trap body fits 1,900 mL Dewar flasks and has overall dimensions of 130 mm wide x 360 mm high.  The 1,000 mL body fits 4,300 mL Dewars and is dimensions of 130 x 400 mm.
