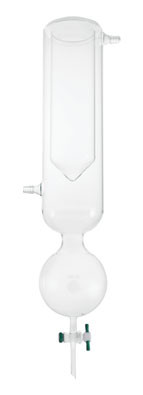

Vacuum Trap, Dewar Type, PTFE Stopcock

This dry ice, Dewar-style trap condenser is designed for large volume solvent removal. Ideal for benchtop rotary evaporators. The lower reservoir has a 4 mm bore PTFE stopcock and your choice of 500 or 1,000 mL capacity. The serrated hose connections are 12 mm at the smallest serration and 14 mm at the largest serration.  This item is available with a plastic safety coating; please contact us for pricing and details.

500 mL size: overall dimensions: 180 mm wide x 515 mm high, reservoir dimensions 75 mm wide x 275 mm deep.

1,000 mL size: overall dimensions: 120 mm wide x 650 mm high, reservoir dimensions 85 mm wide x 300 mm deep.

The replacement PTFE plug is the CG-424-75.
