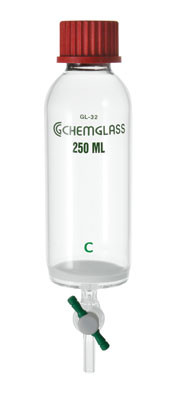

A photograph of a CG-1860 solid phase, peptide synthesis vessel.

Peptide Synthesis Vessels, Solid Phase

Item #: CG-1860

Size:

Quantity:

$177.00

Normal Availability: 1-2 business days

Product Description

These solid phase peptide synthesis vessels have a medium or coarse porosity fritted glass resin support. The top of the vessel has a GL thread and is supplied complete with a PTFE lined PBT screw cap. The lower PTFE stopcock has a 2 mm bore with the arm being 8 mm O.D. For a model with a Luer tip on the stopcock see item # CG-1862. Additional sizes are available by special order.

Capacity (ml)	Disc O.D. (mm)	Overall Height (mm)	Body O.D. (mm)	GL Cap size
10	15	138	18	14
25	20	153	25	25
50	25	183	30	25
100	40	172	51	25
250	50	222	57	32
500	70	245	80	32
