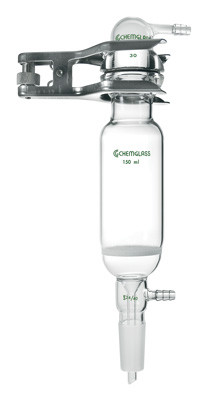

A photograph of aCG-1405-01 pressure assist filter funnel complete with funnel, adapter, clamp and O-ring.

Filter Funnels, Pressure Assist

SKU:
CG-1405
Availability:
1-2 business days
$85.50 - $665.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

These handy filters are for positive pressure filtration of materials up to 15 psi. Connection between the funnel and adapter is made by an O-ring joint which permits a larger, grease-free opening for sample retrieval. The 24/40 lower inner standard taper joint has an outlet for connection to a vacuum source. The frit is coarse porosity.

This item comes complete with the filter funnel, top inlet adapter, a CG-305 Viton O-ring and a CG-150 stainless steel pinchclamp. Available in 150, 250, 500 and 1,000 mL sizes. Individual replacement components are also available.

Item # Capacity (mL) O-ring Joint O-ring Size Pinchclamp Size Outer Diameter (mm)
CG-1405-01 150 #30 #223 #50 50
CG-1405-03 250 #40 #226 #65 60
CG-1405-05 500 #50 #229 #75 70
CG-1405-07 1,000 #50 #229 #75 90
Additional Information
Manufactured in:
USA
