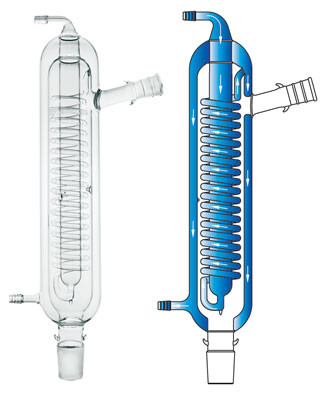

A composite image with a photograph of a CG-1215-C high efficiency condenser on the left and a diagram showing the water flow through the condenser on the right.

Condensers, High Efficiency

Item #: CG-1215-C

* Size:

Quantity:

$1,070.00

Normal Availability: 1-3 business days

Product Description

This unique condenser style has it all. Coolant enters from the upper hose connection and fills a large cold finger that is wrapped with coils. After the coolant travels through the coils it enters the water jacket to maximize the cooling surface along the vapor path. The angled take off joint is a standard taper 24/40 for the 24/40 lower joint model and 29/42 for the 45/50 lower joint models.

Item #	Overall Length (mm)	Jacket Length (mm)	Jacket O.D. (mm)	Upper Joint	Lower Joint	Hose Serration (mm)
CG-1215-C-01	500	400	60	24/40	24/40	10
CG-1215-C-02	730	600	100	29/42	45/50	15
CG-1215-C-09	578	463	90	29/42	45/50	15
CG-1215-C-10	590	465	100	29/42	45/50	15

The hose connections for the CG-1215-C-01 are 10 mm at the largest serration; for the other sizes the largest serration is 15 mm.
