Dual Line Vacuum Manifold Complete System w/ 3, 4, or 5 ports

Product Description

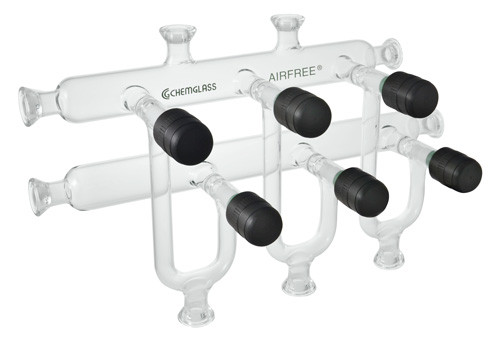

The forward facing 0-8 mm CG-961-02 Chem-Cap® valves of this compact design permit easy operation inside a fume hood. The main ports are spaced 100 mm center to center with an additional two #15 O-ring openings on the upper bank that can be used for gauging or sealed with AF-0210-01 stoppers.

All connection ports are 15mm I.D. O-ring connections for grease-free operation. A variety of adapters for #15 o-ring joints to standard taper components, serrated hose connections or 3/8 in Cajon™ fittings are available to allow the ports to be used with existing glassware. The manifold diameter is 1.5" O.D. and it is available in 3, 4, and 5-port configurations.

The manifold only options include the required number of 0-8 mm valve plugs. The complete packages described below contain everything you need except a vacuum pump, flexible tubing and a Dewar flask to get your system operational. The pricing already reflects a 10% savings over purchasing the package items individually.

Complete Packages Include Each of The Following	AF-0060-80	AF-0060-81	AF-0060-82
AF-0060-0X Manifold with PTFE plugs. # of ports as shown:	3	4	5
AF-0200-01 vacuum trap complete with body O-ring and horseshoe clamp	1	1	1
AF-0070-03 #15 O-ring to 3/4" tubulation (for connecting to vacuum source)	1	1	1
AF-0210-01 #15 O-ring stoppers	5	6	7
CG-150-05 stainless steel clamps for line and trap	10	11	12
AF-0072-01 connecting inlet adapter (for inert/reaction gas supply)	1	1	1
AF-0513-20 bubbler	1	1	1
CG-4022-02 T-shaped tubing connector (For inert gas/bubbler supply line)	1	1	1
AF-0070-01 #15 O-ring to 3/8" tubulation (to adapt ports to vacuum tubing)	3	4	5
CG-305-116 12-pack of spare #116 Viton O-rings	1	1	1
