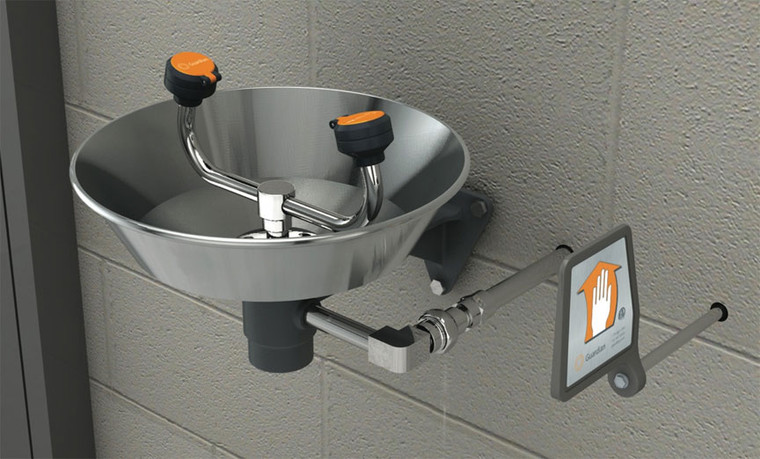

Guardian GFR1814 Freeze-Resistant Eyewash, Wall Mounted, Stainless Steel Bowl

Item #: GFR1814
Quantity:
$779.00

Normal Availability: 3-5 business days

Product Description

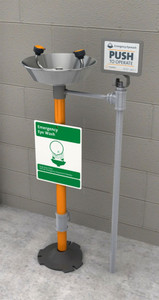

The Guardian Equipment GFR1814 eye wash is freeze resistant because the valve and supply are situated within the heated envelope of the building and the system drains completely after use. You must specify the wall thickness at the time of order. This unit is ideal for extreme cold and outdoor locations. Similar models are the GFR1724 which is identical except that it has only four spray heads to ensure complete coverage of the eyes and face, and the GFR1825 which is a freeze-resistant pedestal-mounted eye wash.

Features Options

Application: Freeze-resistant eyewash for wall mounting. Valve and supply line are located behind wall in heated area to prevent freezing. Self-draining valve permits water to drain completely from unit after use. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water; see the Application Note in the right column for more information.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover and internal flow control.

Valve: 1/2" IPS chrome plated brass three-way self-draining stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Valve has 1/2” NPT female drain port. Valve handle is mounted on extension rod that projects through wall. Specify wall thickness when ordering.

Supply: 1/2" NPT female inlet.

Bowl: 11-1/2" diameter in stainless steel.

Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

GRN Green ABS plastic bowl.

P Orange ABS plastic bowl.

TP 1 1/2" OD Chrome plated brass tailpiece.

Y Yellow ABS plastic bowl.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  GFR1814 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 12 pounds (5.5 kg).

Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
