Guardian GBF2170 and GBF2X72 Series Recessed Safety Stations with Drain Pan, Wall Mounted Exposed Shower Head
Product Description

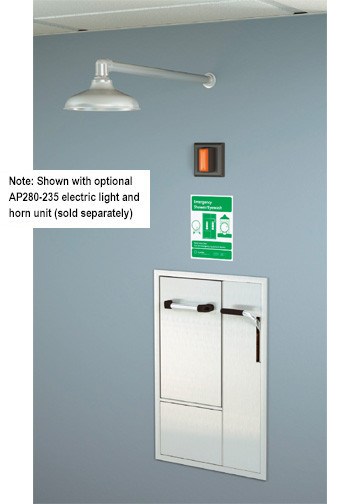

The Guardian Equipment GBF2170 safety station features a wall-mounted shower head ideal for mounting in rooms with high ceilings as well as a recess-mounted emergency eye and face wash which is activated by pulling it forward from the wall. The GBF2150 is similar but has a vertically mounted and unconcealed shower head. The GBF2160 is similar except the shower head is designed to recess into standard 8-foot ceilings.
The GBF2172 is the same unit, only it has a "daylight drain" that empties from the front of the unit instead of draining into the building waste lines. This is useful when connecting to the existing waste line would be expensive or difficult, reducing your installation costs. The daylight drain version comes in several versions; the model numbers with an asterisk are built to customer specifications on demand and are only available by special order (please inquire):
| Model # | Description | Spec sheet | Written specs |
| GBF2170 | Drain pan returns waste water to the cabinet for drainage directly into building waste lines. | Word | |
| GBF2172 | Daylight drain which drains forward. This is useful when connecting to the building plumbing is difficult or expensive. | Word | |
| GBF2372* | Daylight drain with fire-rated construction. Unit has endothermic ceramic fiber blanket around cabinet and is sealed with fire barrier caulk. | Word | |
| GBF2472* | Daylight drain and Type 304 stainless steel construction for cleanroom installation. | Word | |
| GBF2572* | Daylight drain and Type 316 stainless steel construction for cleanroom installation | Word |
*Contact us for pricing and availability for the GBF2372, GBF2472, and GBF2572 models.
| Features | Options |
|
Application: Recessed barrier-free eye/face wash and shower safety station with wall-mounted shower head and drain pan. Stainless steel cover provides attractive appearance and protects unit when not in use. When activated, cover serves as pan to collect waste water and return it into unit for drainage. ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons. Shower Head: 10" diameter stainless steel. Furnished with horizontal supply pipe and wall escutcheon. Shower Valve: 1" IPS brass stay-open ball valve with stainless steel “panic bar” actuator. Cover/Drain Pan: 16 gauge stainless steel combination cover and drain pan. Grasping “panic bar” handle and opening cover pulls spray head assembly down from vertical to horizontal position, activating water flow. While unit is in operation, waste water is collected in drain pan and returned into cabinet for drainage (GBF2170) or is re-directed to the daylight drain for drainage out the front of the unit. These unit remains in operation until the cover is returned to the closed position. Eye/Face Wash Spray Head Assembly: Two FS-Plus™ spray heads mounted on supply arms. Each spray head has individually adjustable flow control and filter to remove impurities from water. Eye/Face Wash Valve: 1/2" IPS brass rotating plug-type valve. Furnished with Teflon® coated O-ring seals and in-line strainer to protect valve from debris and foreign matter. Mounting: 16 gauge stainless steel cabinet with flange featuring 3/8” return for recessed mounting in wall. Pipe & Fittings: Exposed pipe and escutcheon are brushed stainless steel. Supply: 1" NPT female inlet. Waste: 2" NPT female outlet. Sign: Furnished with ANSI-compliant identification sign, item # 250-009G. Quality Assurance: Unit is completely assembled and water tested prior to shipment. Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor. |
AP250-064 Test Kit includes a removable fitting with elbow and drain tube that installs in the daylight drain for testing the unit. APBF250-065 Modesty curtain. AP280-230 Electric light and alarm horn. PCC Polished chrome plated brass shower supply nipple. Application Note An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
|
Documentation available: See the first table above for specification sheets and measured drawings. An installation, operation and maintenance guide is also available.
Common replacement parts: 470-0024R replacement FS-Plus™ foam filters (6/pkg), 470-0025R replacement FS-Plus™ flow controls (6/pkg), and AP470-0021 replacement FS-Plus™ spray head.
All Guardian items are manufactured in the USA. This item ships on a pallet which is generally 48" x 40" x 22" (122 x 102 x 56 cm) with an overall weight of ~ 105 lb (48 kg). The freight class is 85.
Warranty Information
2-year limited manufacturer warranty.
