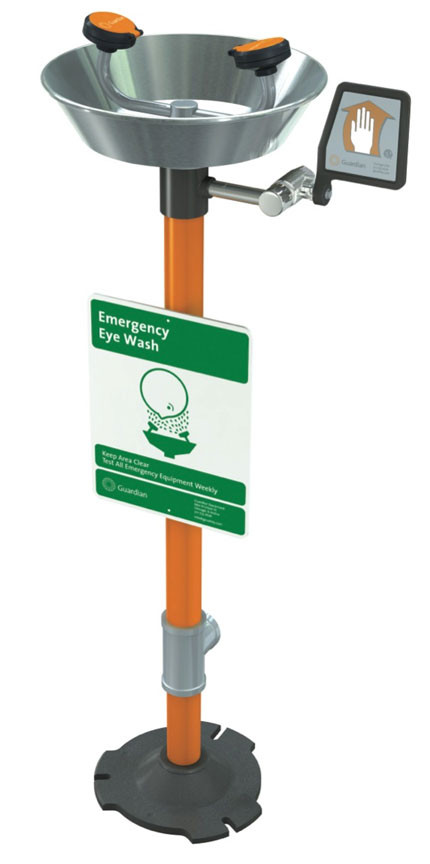

- Guardian G1760 Eye/Face Washes, Pedestal Mounted, Stainless Steel Bowl
)
Product Description
The Guardian Equipment G1760 features a stainless steel bowl and comes with a number of popular options such as a stainless-steel bowl cover (G1760BC), auxilliary drench hose (G1760HS), and hand/foot controls (G1760HFC). The G1784 is the all-stainless steel version of this model. For a similar wall-mount model see the G1750. Addtional configurations and ADA-compliant models are also available.
| Features | Options |
|
Application: Free standing, pedestal mounted eye/face wash. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face. Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Bowl: 11-1/2" diameter. Bowl is stainless steel (G1760) or orange ABS plastic (G1760P). Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance. Supply: 1/2" NPT female inlet. Waste: 1-1/4" NPT female outlet. Sign: ANSI-compliant identification sign, item # 250-007G. Quality Assurance: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. |
BC Stainless steel bowl cover (G1760 only). Cover protects unit against contaminants. Cover is automatically raised when unit is activated. HFC Hand and foot control. Eye/face wash is activated by flag handle or foot treadle. HS Auxiliary hand-held drench hose for rinsing eyes, face or body. P Orange ABS plastic bowl in place of the stainless steel powl. PCC Polished chrome-plated brass construction throughout. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes. |
Documentation available: G1760 and G1760HFC specification sheet w/ measured drawings, parts list, and written specifications for the G1760 and G1760HFC (Word format).
Common replacement parts: 470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.
The G1760 ships in a box approximately 16" x 23" x 13" (41 x 58 x 33 cm) weighing approximately 18 pounds (8.2 kg).
The G1760BC ships in a box weighing approximately 20 lb (9.1 kg) measuring approximately 16" x 23" x 13" (41 x 58 x 33 cm).
Warranty Information
2-year manufacturer limited warranty.
