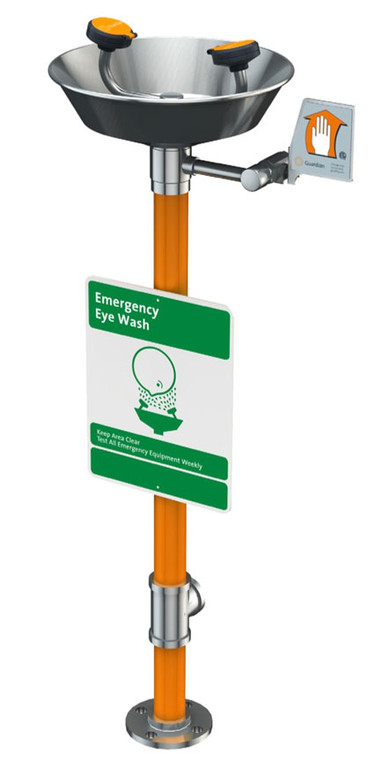

  • A photograph of a Guardian G1784 Eyewash, Pedestal Mounted, All-Stainless Steel.

Guardian G1784 Eyewash, Pedestal Mounted, All-Stainless Steel

Item #: G1784
Quantity:
$1,317.50

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G1784 is an all-stainless steel unit for superior corrosion resistance. The G1794 is identical except it uses four GS-Plus™ spray heads to wash the eyes and face. The G1894 is similar but has two GS-Plus™ spray heads which wash only the eyes. For a similar wall-mount model see the G1781. Addtional corrostion-resistant as well as ADA-compliant models are also available.

Features Options

Application: Free standing, pedestal mounted eye/face wash. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and clean room applications. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals.

Bowl: 11-1/8" diameter stainless steel.

Pipe and Fittings: Schedule 40 stainless steel. Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.

Supply: 1/2" NPT female inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.

BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised
when unit is activated.

HFC Hand and foot control. Eye/face wash is activated by flag handle or foot treadle.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1784 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 16" x 23" x 13" (41 x 58 x 33 cm) weighing approximately 15 pounds (6.8 kg). The G1784BC ships in a box weighing approximately 18 lb (8.2 kg) measuring approximately 25" x 18" x 23" (64 x 46 x 58 cm).



Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
