Ohaus Universal Shaker Platform

Product Description

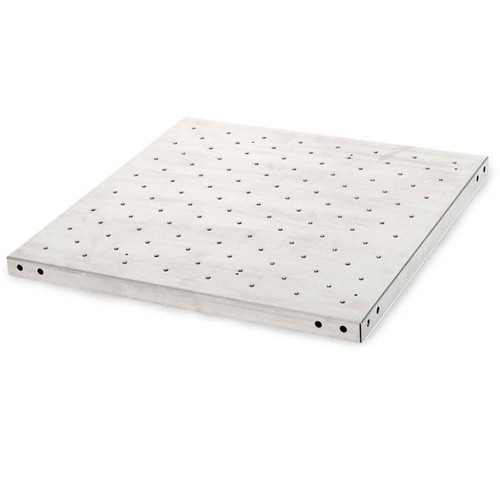

These 304 stainless steel platforms allow for mounting of flask clamps, test tubes, and bottle clamps. Installation is easy - simply slide the platform over top of the included tray and tighten the adjustment screws. Optional accessories screw directly onto the mounting point openings. Two tier braces (sold separately) allow stacking of platforms with a 10" clearance (available for select sizes). The optional non-skid rubber mat (item # 23102) can be placed on the platform for an added non-slip surface.

Some of these platforms can be stacked with the addition of a set of two tier braces (item # 23101; sold separately).

Please check the following table carefully before ordering.

Item #	Dimensions	Two tier ready?	Use with these shakers ONLY
23100-e-E51LD	8.75" x 11.75" 22 x 30 cm	No	Endeavor 5000, 3 mm (#H-30770909), Endeavor 5000, 20 mm (#H-30770910) Light Duty Orbital Shakers
23100-A	11" x 13" 27.9 x 33 cm	No	Analog 16 kg (#23024), Digital 16 kg (#23035), Incubating 16 kg (#23216), Ext. Environments (#23046),Reciprocating (#23037) Shakers
23100-B	13" x 13" 33 x 33 cm	No	Analog 16 kg (#23024), Digital 16 kg (#23035), Ext. Environments (#23046), Reciprocating (#23037) Shakers
23100-C	18" x 18" 45.7 x 45.7 cm	Yes	Analog 16 kg (#23024), Digital 16 kg (#23035), Ext. Environments (#23046), Reciprocating (#23037) Shakers; SEE NOTE
23100-D	18" x 18" 45.7 x 45.7 cm	No	Incubating 23 kg (#23218) Incubating/Cooling 23 kg (#23220) Shakers
23100-E	18" x 24" 45.7 x 61 cm	Yes	Analog 16 kg (#23024), Digital 16 kg (#23035), Ext. Environments (#23046), Reciprocating (#23037) SEE NOTE, Analog 23 kg (#23026), Digital 23 kg (#23038) Shakers
23100-F	24" x 24" 61 x 61 cm	No	Digital 45 kg (#23040), (#23041) Shakers.
23100-G	18" x 30" 45.7 x 76.2 cm	Yes	Analog 23 kg (#23026), Digital 23 kg (#23038) Shakers
23100-H	24" x 36" 61 x 91.4 cm	No	Digital 68 kg (#23042), (#23043) Shakers.

NOTE: Stacking of platforms is not recommended for Reciprocating Shakers.

These items replace the obsolete Talboys Universal Shaker Platform (980169, 980434-980439).
