Fume Hood Equipment Lattice Kits

Product Description

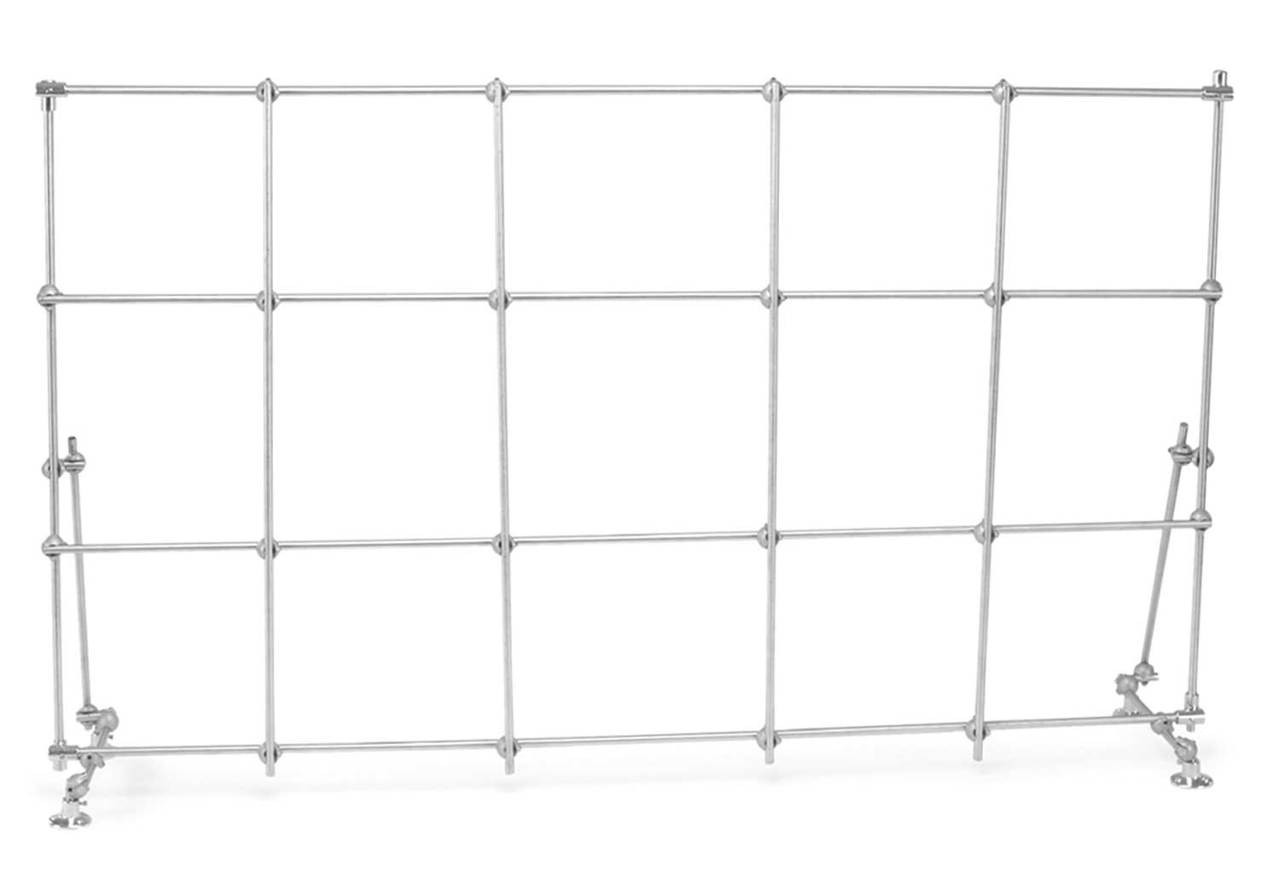

These kits are especially designed to fit into hoods of the selected width and withstand the harsh environment. The rods and all components are constructed of stainless steel except for the frame connectors which are made of aluminum with a silicon finish. These kits are available to fit 4, 5, 6, and 8-foot width hoods; the 6-foot model is shown here. The kits include the following components:

Fume Hood Size	Overall Dimensions (h x w x d)	Rods included	# of Frame connectors	# of Rod end connectors	# of feet
4'	36" x 38" x 12" (914 x 965 mm x 305 mm)	(8) 2" (51 mm) rods (2) 12" (305 mm) rods (2) 18" (457 mm) rods (4) 36" (914 mm) rods (4) 38" (965 mm) rods	30	4	4
5'	36" x 50" x 12" (914 x 1,270 mm x 305 mm)	(8) 2" (51 mm) rods (2) 12" (305 mm) rods (2) 18" (457 mm) rods (5) 36" (914 mm) rods (4) 50" (1,270 mm) rods	34	4	4
6'	36" x 62" x 12" (914 x 1,575 mm x 305 mm)	(8) 2" (51 mm) rods (2) 12" (305 mm) rods (2) 18" (457 mm) rods (6) 36" (914 mm) rods (4) 62" (1,575 mm) rods	38	4	4
8'	36" x 86" x 12" (914 x 2,184 mm x 305 mm)	(10) 2" (51 mm) rods (3) 12" (305 mm) rods (2) 18" (457 mm) rods (8) 36" (914 mm) rods (4) 86" (2,184 mm) rods	45	4	6

A variety of other kits for benchtop and freestanding use are listed on our lattices and rods page.
