Brackets for Ansul Red Line Model 20 Cartridge Extinguishers

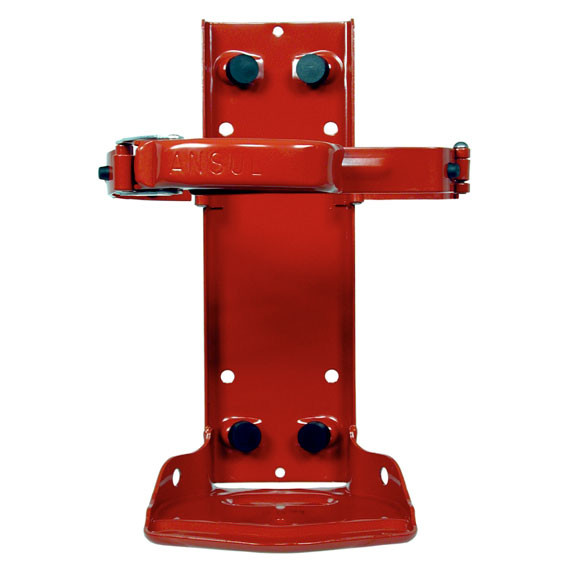

These welded brackets for 20 lb Ansul RedLine cartridge-operated extinguishers, are constructed of heavy gauge steel and are available in regular and corrosion-resistant versions, both of which are available in standard or heavy-duty versions. The overcenter toggle action of the clamp arm employs the closing tension to lock the arm tightly around the extinguisher while still providing quick and easy access. Resilient pads grip and support the extinguisher, minimizing movement regardless of the bracket mounting position. Holes are provided for mounting the bracket by the back plate or by the base.

Standard brackets may be mounted in a vertical, horizontal, or sloping position on any sufficiently strong, stationary, supporting surface, or within suitable vehicle compartments, but are not meant for high-stress or external vehicle applications. The heavy-duty brackets are for rugged applications such as all external mounts on vehicles and all mounts on larger equipment, both over-the-road and off-road; they have been manufacturer-tested to 5 g’s parallel to the length of the bracket back and 1 g in the planes perpendicular to that.

Standard duty brackets are sold in pairs only and each one weighs 8 lb (3.6 kg). Heavy-duty brackets are sold singly and each one weighs 11 lb (5 kg). Dimensions are given in the drawings shown above.
