Product Description

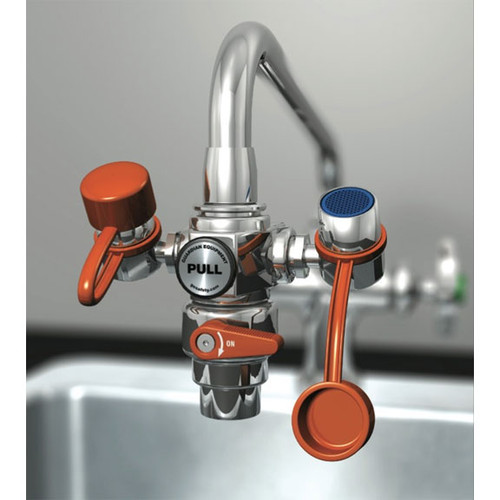

The Guardian Equipment G1200 eyewash installs easily on existing laboratory faucets without interfering with the normal faucet operation. Water is aerated and sprayed through adjustable outlet heads that angle forward for easy access. This unit fits standard faucets with spray heads 3" apart; the G1201 for gooseneck faucets is also available. The related G1100 model is similar except that lacks the convenience of single valve faucet activation.
| Features | Options |
|
Faucet Control Valve: Quarter turn ball valve with chrome plated brass ball, molded TFE seals and plastic handle. Operation: Unlike conventional faucet-mounted eyewashes, the G1200 offers the ability to activate the eyewash in a single motion. The unit is equipped with a diverter valve for the eyewash and a separate control valve for the faucet. Once the unit is installed on a faucet, the faucet may be opened and left “on” to a preset temperature. To use the faucet, the flow of water is controlled by a quarter-turn ball valve and knob at the bottom of the eyewash. To use the eyewash, simply pull the knob on the front of the eyewash. Since the faucet is open, this is the only step required to activate the eyewash. Water pressure holds the eyewash in operation, leaving the user’s hands free, To return to normal faucet operation, push the knob in or turn off the faucet. Outlet Heads: Outlet heads are mounted 3" apart and deliver a soft, aerated flow of water. Heads angle forward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads. Eyewash Valve: Forged brass diverter valve. Inlet: The inlet body has 55/64"-27 female thread. Furnished with a set of four adaptors (15/16"-27, 13/16"-27 and 3/8" IPS male as well as a 13/16"-24 female thread AP400-012) for installing on most commonly used faucets, including laboratory-type faucets. This set is also available separately as item # AP400-009). Outlet: Furnished with removable aerator on bottom. Quality Assurance: Each unit is completely assembled and water tested prior to shipment. |
AP400-015 Female 3/4" garden hose inlet adapter allows. This item allows one to connect a standard 3/4" garden hose to the inlet (supply) side of the eyewash. Application Note Important: Faucet-mounted eyewashes, whether manufactured by Guardian Equipment or other companies, require two motions to operate (turn on water, pull knob to activate eyewash flow). Therefore, Guardian does not believe that these units meet the provisions of ANSI Z358.1-2014 as eyewash units. These units are intended solely as supplemental units in addition to dedicated, plumbed eyewash equipment installed in the workplace. Faucet-mounted eyewashes should be used with cold or warm water only. Use of hot water might cause scalding.
|
Documentation available: G1200 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 250-046R replacement float-off dust covers (set of 2)
All Guardian items are manufactured in the USA. This item ships in a box approximately 5-1/2" x 2-1/2" x 2-3/8" (14 x 6.4 x 6 cm) weighing approximately 0.85 pounds (0.38 kg).
Warranty Information
2-year limited manufacturer warranty.
