- Guardian G1101 EyeSafe-X™ Faucet-Mounted Eyewash, Adjustable Aerated Outlet Heads
)
Product Description

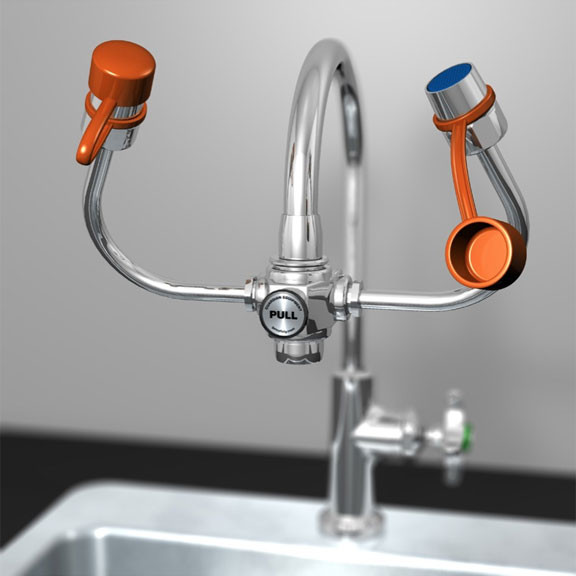

The Guardian Equipment G1101 eyewash installs easily on existing laboratory faucets without interfering with the normal faucet operation. Water is aerated and sprayed through adjustable outlet heads that angle forward for easy access. This unit fits gooseneck-style faucets with spray heads 5" apart; the G1100 for standard faucets is also available. The related G1201 model is similar except that it features the ability to activate the unit in a single motion.
| Features | Options |
|
Application: EyeSafe™ faucet-mounted eyewashes convert any faucet into an emergency eyewash station without interfering with normal faucet operation. An EyeSafe™ unit can be installed at any sink, close to where accidents might occur. In an emergency, unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user’s eyes. Outlet Heads: Outlet heads are mounted 5" apart and deliver a soft, aerated flow of water. Heads angle forward and inward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads. Valve: Forged brass diverter valve. Pull knob to activate eyewash; water pressure holds eyewash in operation, leaving user’s hands free. Push knob or turn off faucet to return to normal faucet operation. Inlet: The inlet body has 55/64"-27 female thread. Furnished with a set of four adaptors (15/16"-27, 13/16"-27 and 3/8" IPS male as well as a 13/16"-24 female thread AP400-012) for installing on most commonly used faucets, including laboratory-type faucets. This set is also available separately as item # AP400-009). Outlet: Furnished with removable aerator on bottom. Quality Assurance: Each unit is completely assembled and water tested prior to shipment. |
AP400-015 Female 3/4" garden hose inlet adapter allows. This item allows one to connect a standard 3/4" garden hose to the inlet (supply) side of the eyewash. Application Note Important: Faucet-mounted eyewashes, whether manufactured by Guardian Equipment or other companies, require two motions to operate (turn on water, pull knob to activate eyewash flow). Therefore, Guardian does not believe that these units meet the provisions of ANSI Z358.1-2014 as eyewash units. These units are intended solely as supplemental units in addition to dedicated, plumbed eyewash equipment installed in the workplace. Faucet-mounted eyewashes should be used with cold or warm water only. Use of hot water might cause scalding.
|
Documentation available: G1101 specification sheet w/ measured drawings, parts list, and written specifications (Word format).
Common replacement parts: 250-046R replacement float-off dust covers (set of 2)
All Guardian items are manufactured in the USA. This item ships in a box approximately 8" x 5 " x 2" (20 x 13 x 5 cm) weighing approximately 1 pound (0.45 kg).
Warranty Information
2-year limited manufacturer warranty.
