Chem-Vac™, Chem-Cap® Valve Replacement Plug, High Vacuum

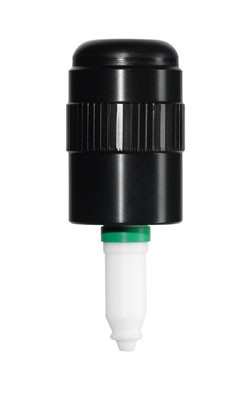

This is a replacement CHEM-CAP® plug and control knob for CHEM-VAC™ high vacuum valves CG-951 through CG-960. The plug is sold complete with a control knob and CHEM-CAP® stem.

These valves can be used in applications down to 10^-7 torr. This plug features an integral Teflon® tip O-ring, preventing O-ring exposure to material at the primary seal. The shaft seal is accomplished by means of 2 Viton® O-rings covered with a specially designed Teflon® "caps". The only material exposed to the system is Teflon®.

NOTE: The control knob is not sold separately on the CG-900 series valves. The 0-20 mm bore size valve is our previous style CG-500 series valve with coarse thread and is available as item #CG-561-04.
