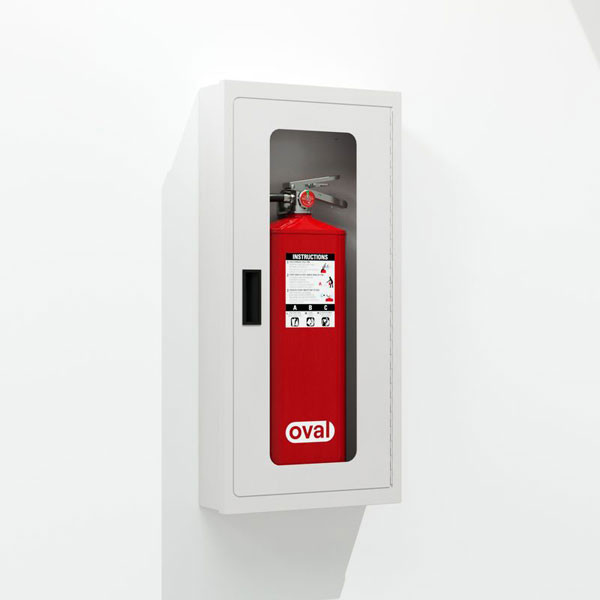

Oval CSST Surface Mounted Cabinets for Model 10J-ABC Fire Extinguishers, Powder-Coated Steel

These Fire Extinguisher Cabinets are specifically manufactured for use with Oval Model 10J-ABC low-profile fire extinguishers. These 14.25" (w) x 29.125" (h) x 4" (d) (362 x 740 x 102 mm) cabinets are intended for surface mounting on walls. Since installation does not require cutting into or modifying walls, they are an excellent option for retrofit applications.  Mounting hardware is not included.

Accessibility: When mounted, these units comply with the 4" (102 mm) maximum limit for protruding objects as required by the Americans with Disabilities Act (ADA), 2010 ADA Standards for Accessible Design, the International Building Code and ANSI/ICC ANSI A117.1.

Construction: The cabinet is fully welded 16 gauge cold rolled steel with a powder coated finish. The tub is made of 22 gauge steel, also powder coated. The units are available in white (standard), red, and black.

Door: The 16 gauge steel door has a continuous steel piano hinge, a 1.25" (32 mm) trim, (2) self-adjusting roller catches, a black, plastic recessed handle and it opens 180°. The cabinet is reversible so the handle can be on either the left or right side.

Window/Lock: These cabinets are available with a full glass front, a vertical half window or as a solid door.  Tempered glass is available for an extra charge. Locks that permit opening by pulling firmly (breaking glass is not required) are available for an extra charge.

Lettering: The cabinet is furnished without lettering however, the words "Fire Extinguisher" can be added for an extra charge. Lettering is available in red, white or black as a clear vertical decal, vertical die-cut letters or ascending die-cut letters.

This model is also available in Stainless Steel. Other cabinet styles include recess mounted, fire-rated, ligature-resistant surface mounted, and ligature-resistant recess mounted.

Detailed specifications for the CSST cabinet series are available as a PDF file.    Specifications and drawings for the CSST cabinet series. View Window/Lock/Lettering Options.

Individual cabinets have shipping dimensions of 18" x 33" x 4.5" and weigh 30 lb.
