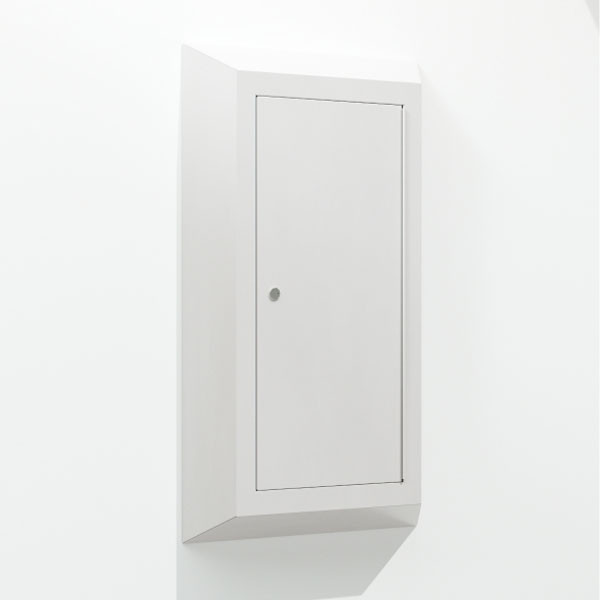

Oval CSLRST Surface Mounted, Ligature-Resistant Cabinets for Model 10J-ABC Fire Extinguishers, Powder-Coated Steel

These surface mounted ligature-resistant Fire Extinguisher Cabinets are specifically manufactured for use with Oval Model 10J-ABC low-profile fire extinguishers. The cabinet is designed to eliminate all potential points of attachment.  The sides, bottom and top of the frame are sloped and the corners are welded and ground smooth.  The cabinet has a solid door with keyed cylinder lock and without a handle. These cabinets have a 19-3/8" (w) x 34-1/2" (h) (492 x 876 mm) outer frame and have a depth of 3-7/8" (98 mm) from the wall on which  they are mounted.  Since installation does not require cutting into or modifying walls, they are an excellent option for retrofit applications.  Mounting hardware is not included.

Construction: The cabinet is fully welded 16 gauge cold rolled steel with a white powder coated finish. The tub is made of 22 gauge steel, also white powder coated. The cabinets are available in white red, and black.

Door: The 16 gauge steel door has a continuous steel piano hinge, a 1.25" (32 mm) trim, (2) self-adjusting roller catches, a black, plastic recessed handle and it opens 180°. The cabinet is reversible so the handle can be on either the left or right side.

Lettering: The cabinet is furnished without lettering however, the words "Fire Extinguisher" can be added for an extra charge. Lettering is available in red, white or black as a clear vertical decal, vertical die-cut letters or ascending die-cut letters.

Other cabinet styles include surface mounted, recess mounted, fire-rated recess mounted, and ligature-resistant recess mounted.

Detailed specifications for the CSLRST cabinet series are available as a PDF file.    Specifications and drawings for the CSLRST cabinet series.

Individual cabinets have a shipping weight of 32 lb.
