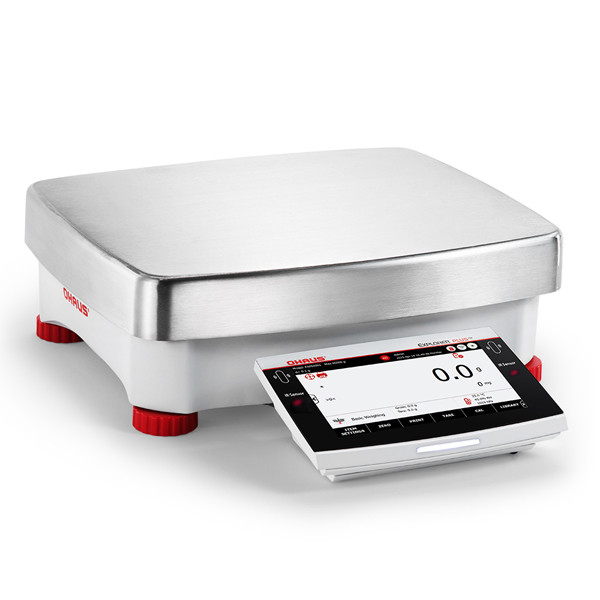

Ohaus Explorer Plus™ High Capacity Balances

The Ohaus Explorer Plus™ High Capacity Balances are extremely accurate and durable, and are ideal for laboratory and industrial environments. The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability, and this flagship balance is crafted to meet the most demanding requirements of modern scientific research. The models have capacities of 24,000 g, 35,000 g or 65,000 g with a readability of 0.1 g.The precision-machined, solid metal weighing cells coupled with Ohaus’ signature AutoCal™ internal calibration system ensure accurate, reproducible measurements.

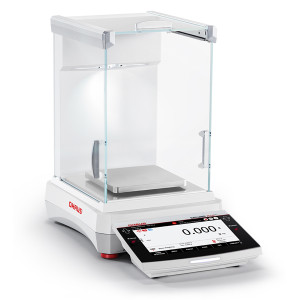

All Explorer-PLUS models feature a detachable terminal and base design, 3 ambient sensors (temperature, humidity and air pressure), and an optional fingerprint accessory. Analytical and precision models have a motorized leveling system with a digital-level bubble. In addition EXP models with draft shields come standard with anti-pinch auto doors, sample spotlight, built-in ionizers, and customized terminal and draft shield lights.

Each unit features seamless setup with automatic calibration, a 7-inch glass touchscreen, chemical protection, and 2 modifiable status lights. Compliance is also ensured with a 4-level user system, password protection, and 100k internal system log. The time synchronization NTP function confirms data traceability to meet Pharmaceutical regulations.

Typical application modes include basic weighing, parts counting, check counting, percent weighing, check weighing, dynamic weighing, totalization, formulation, differential, density determination, peak hold, SQC, fill weight variation, and flow rate control. Weight displays feature 19 weighing units, including Gram, Kilograms, Carat, Newton, Ounce, Troy Ounce, Grain, Pennyweight, Momme, msg, tl H, tl S, tl T, tcl, tola, baht, lb, and 2 custom set options.

The die-cast metal base, 14.8" x 12.2" (377 mm x 311 mm) stainless steel pan and thick metal housing withstand daily wear and tear, and are powered with an AC adapter (included). Communication via USB Host Type A (x2), USB Device Type B, USB Device Type C, Ethernet (RJ45), RS232, and an optional Wi-Fi/Bluetooth Dongle (accessory sold separately) Also featured are straightforward integration to Laboratory Information Management Systems (LIMS) and hassle-free data transfer with a driverless HID, for easy data input.

Dimensions: 4.9” h x 14.9” d x 17.2” w (125 x 378 x 438 mm) Weight: 24.3 lb (11.0 kg)

See H-EXPLORER-PLUS-HC-NTEP for Certified and Measurement Canada Approved models.

Literature available:

• Ohaus Balance Selector Guide
• Ohaus Explorer PLUS/EXR Brochure
• Ohaus Explorer Plus™ Analytical, Precision and High Capacity Balances summary sheet

Accessories: A variety of accessories and replacement parts are available. column/tower kit (item # H-30808539), rechargeable battery (item # H-310529322), static ionizer (item # H-30130302), bluetooth and wi-fi dongle (item # H-31059239), FIN-100A Fingerprint Scanner (item # H-31059238), SF40A impact printer (item # H-30064203), SF40A bluetooth impact printer (item # H-30944360), SF40A paper rolls (item # H-12120799), SF40A ink ribbon cassette (item # H-30529322), AD7-RS Auxiliary Display (item # H-30472064), RS232-USB Interface Kit (item # H-30304101), RS232-IBM 9P Male to Female Cable (item # H-30078078), RS422 9m, EX EX-HiCap Cable (item # H-80500525).
