- Bullard EDP10 Free-Air Pump for 1-2 Respirators, 115 V, 1-2 users
Product Description

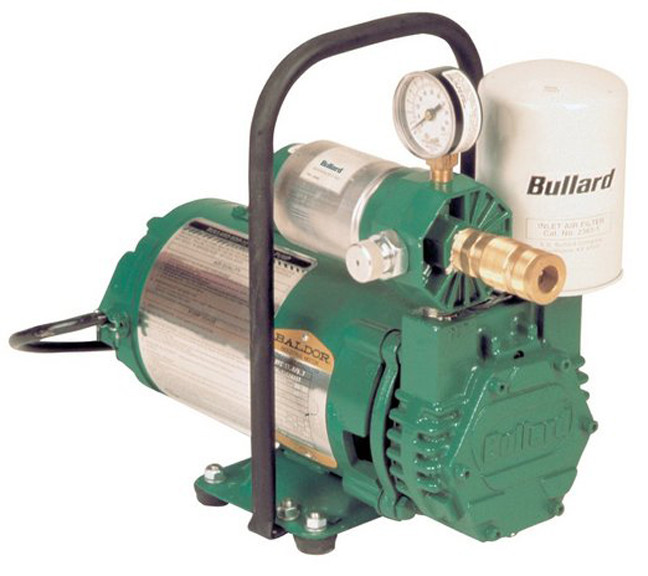

The Bullard EDP10 Free-Air pump supplies air for one continuous flow airline hood/helmet style respirator or two tight-fitting facepiece style units. This 115 volt unit features a 3/4 hp motor and has an air flow of 5 CFM at 10 psig. When used with optional extension hose kits, the breathable air inlet filter can be located up to 300 feet away from the pump. The inlet filter is medium efficiency, keeping particles larger than 25 microns out of the air supply.
These pumps are ideal for supplying clean, breathable air when a compressed air system is not available. The oil-less design means these pumps do not produce carbon monoxide, oil vapor or oil mist. Therefore, there is no need for expensive CO monitors, temperature alarms, airline filters, or complicated calibration equipment that is required in compressed air systems.
This unit weighs 49 lbs (22.2 kg) and is 8" w x 16.3" l x 13.5" h. Lead time on this product is firm. Supplied-air respirators used with this pump must be NIOSH approved to operate at 15 psig or less. Literature available for download or on-line viewing:
- Manufacturer Instruction Manual
- EDP10 Bid Specifications
- Repair Kit Instructions
- Run Hour Meter Conversion Instructions
- Air Flow Diagram
- Air Pump Features and Benefits Comparison
- Air Pump Competitive Comparison
Shipping weight: 51 lb (23.2 kg). Shipping dims: 21" x 12" x 16" (53.3 x 30.5 x 40.6 cm).
Product Videos
How to replace the carbon vanes in the Bullard EDP10 Free-Air pump.
-
EDP10 Carbon V...How to replace the carbon vanes in the Bullard EDP10 Free-Air ...
-
EDP10 Filter R...How to replace the inlet and outlet filters in the Bullard EDP...
-
EDP Run Hour M...Installation of a run hour meter on a Bullard EDP10 Free-Air® ...
