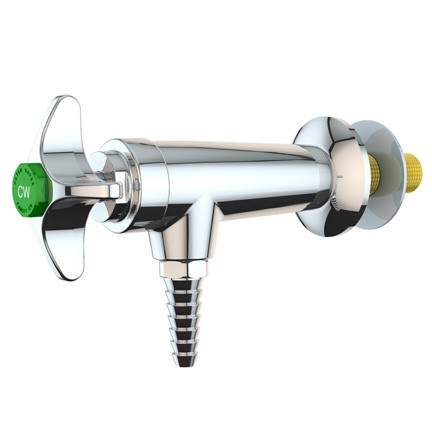

L5100F-225WSA Wall-Mounted Laboratory Water Valve, 90° Angle, Chrome Finish

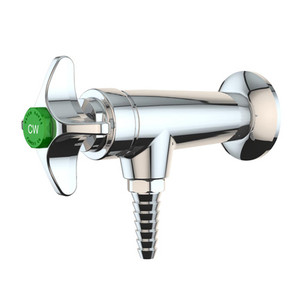

The WaterSaver Faucet Co.'s L5100F-225WSA water valve is designed for installation on vertical surfaces (such as walls and laboratory bench dividers) where there is access behind the wall via a pipe chase or service carrier during installation. The threaded mounting shank is inserted through a hole in the surface and secured with locknut and washer. For installations where there is no access behind the wall (such as drywall or outer building walls), consider the L5100FT-325 instead.

This valve has a 90° angle pattern and a removable anti-splash serrated hose end. The body and four-arm handle are made of polished chrome-plated brass. The inlet and removable outlet are 3/8" female NPT. The self-contained compression valve unit has a replaceable stainless steel seat. Each unit is fully assembled and factory tested prior to shipment.

This item is also available in a tin-lined version for pure water use by special order.

A specification drawing is available for download and installation guidelines are available on-line.

Small orders for this valve ship from New Jersey. Larger orders ship from the factory in Chicago, IL.

FOR LABORATORY USE ONLY - These faucets are not suitable for potable drinking water as they are made of brass which may have traces of lead.
