- Guardian G5011 Drench Hose Retrofit Kit
)
Product Description

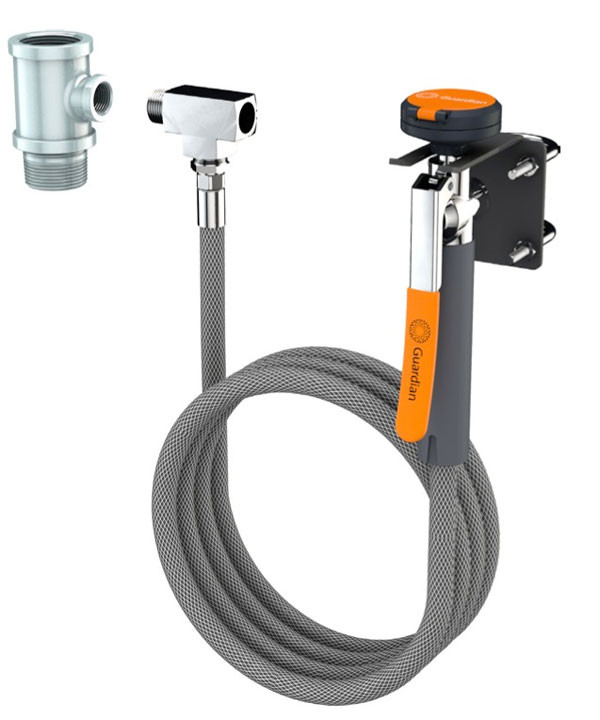

The Guardian Equipment G5011 is a retrofit kit to adapt your existing safety stations and wall or pedestal-mounted eye/face washes with an auxiliary drench hose that is ideal for rinsing eyes, face, body and even equipment. The kit includes the necessary tee adapter to tap into your existing unit as well as a mounting bracket to hold the spray head. If you don't need the retrofit capability, consider the unmounted G5010 or the wall-mounted G5025 instead.
| Features | Options |
|
Application: Retrofit existing safety stations and wall mounted or pedestal mounted eye and eye/face washes with auxiliary drench hose. Ideal for rinsing eyes, face, and body. Note: ANSI Z358.1-2014 states drench hose units supplement, but do not replace, other types of emergency equipment. If you require eyewash protection, consider a two-head eyewash/drench hose combination unit instead. Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released. Hose: 8' reinforced PVC hose with 300 PSI maximum working pressure. Supply: 1/2" IPS chrome plated brass tee and 1-1/4" x 1/2" NPT reducing tee included. Connections also include close nipples to facilitate retrofit installation. Mounting: Wall mount with included steel bracket or pipe mount with included 1-1/4” IPS pipe U-bolts. Sign: ANSI-compliant identification sign, item # 250-006G. Quality Assurance: Assembled and water tested prior to shipment. |
FSH 8 ft. flexible stainless steel hose (replaces PVC hose). LC Locking clip for valve handle. Valve stays open until locking clip is released. VB In-line vacuum breaker for installation between valve and spray head. Application Note An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes. |
Documentation available: G5011 specification sheet w/ measured drawings and installation, opertion and maintenance guide.
Common replacement parts: 470-0024R replacement FS-Plus™ foam filters (6/pkg), 470-0025R replacement FS-Plus™ flow controls (6/pkg), and AP470-0021 replacement FS-Plus™ spray head.
All Guardian items are manufactured in the USA. Approximate shipping weight is 5 pounds (2.3 kg) and the approximate shipping dimensions are 12" x 11" x 4" (30.5 x 28 x 10 cm).
Warranty Information
2-year limited manufacturer warranty.
