Replacement Guardian 150-066-1R Waste Receptor for Safety Stations

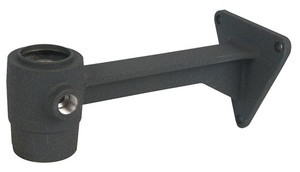

The Guardian Equipment 150-066-1R waste receptor is made of aluminum, has a 1-1/2" IPS male drain, and includes a flared nipple coupling with gasket. It is a replacement part for most Guardian safety stations. Note that pedestal-mounted (free-standing floor mounted), and deck-mounted eye/face washes take the 150-066-2 waste receptor instead while most wall-mounted units take the 150-014E-2.

Note 1: Specialty units (all PVC, all stainless, for example) have waste receptors that are not replaceable because they are welded in.

Note 2: This item replaces Guardian Equipment part number 150-068-01, which was made of plastic.

Note 3: The overall dimensions of this item are 2.75" h x 5.5" w (7.0 x 14.0 cm). Older models featured a taller body, but this part is designed to replace the older units by making some adjustments to the eyewash component.
