Product Description

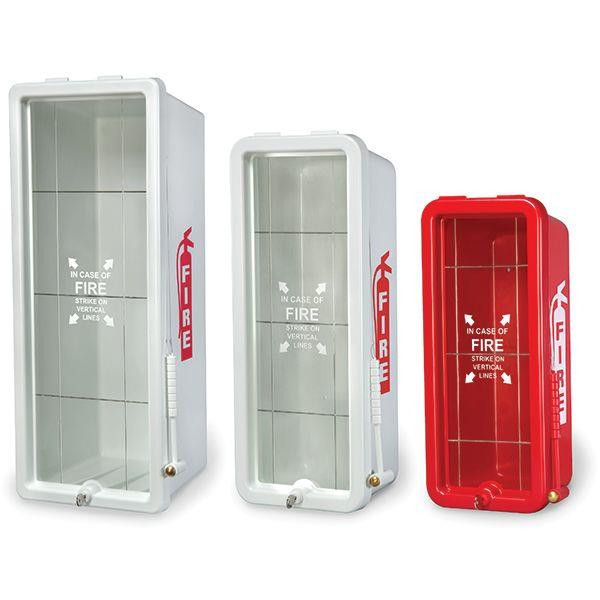

These surface-mounted fire extinguisher cabinets affords economical weather-resistant protection for your fire equipment. These high density injection-molded plastic cabinets can not rust, will not fade, have no sharp corners, are are dent-resistant, contain UV inhibitors, and feature a 0.110" wall thickness.
These cabinets include a chromium-plated brass cylinder lock with 2 keys as well as a plastic protective lock cover. They also include an injection-molded plastic hammer with a brass impact surface with flexible torsion and ribbed grip. The hammer is connected by a 304 stainless steel clear nylon-jacketed mechanical cable. The windows are made of 0.100" crystal polystyrene.
These cabinets are available in your choice of white or red in three sizes designed to fit most 5, 10, and 20 lb dry chemical fire extinguishers. Be sure to check the dimensions of your extinguishers with the size chart below before ordering. These cabinets and parts are compatible with the corresponding size Cato Chief and FireTech cabinets.
| Item # | Extinguisher sizes | Inside Height | Inside Width | Inside Depth | Outside Height | Outside Width | Outside Depth | Shipping Weight |
| 09410-5 | Most 5 lb or less | 16-3/4" (425) | 6" (152 mm) | 5-1/2" (140 mm) | 19-1/2" (495 mm) | 8-1/4" (210 mm) | 6-3/4" (171 mm) | 3.1 lb (1.4 kg) |
| 09410-10 | Most 10 lb or less | 20-5/8" (524) | 6-3/4" (171 mm) | 6" (152 mm) | 23-3/8" (594) | 9-3/8" (238 mm) | 7-1/4" (184 mm) | 4.2 lb (1.9 kg) |
| 09410-20 | Most 20 lb or less | 24-3/4" (629) | 8-1/2" (216 mm) | 8-7/8" (225 mm) | 28-3/8" (721) | 11-3/8" (289 mm) | 10-1/8" (257 mm) | 8.8 lb (4.0 kg) |
Replacement components include frame/lock sets (item #09420), acrylic break panels (item #09421), cylinder locks (item #09422), and hammer assemblies (item #09422).
