Vinyl Fire Extinguisher Covers for Portable Handheld Extinguishers

Product Description

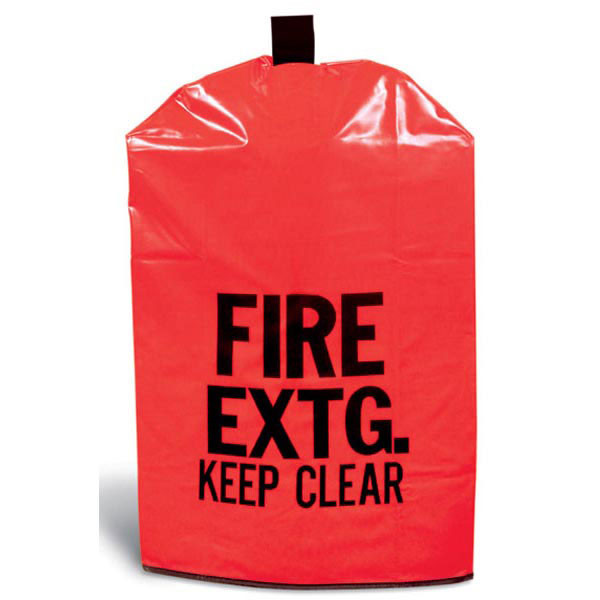

These red fire extinguisher covers have a black imprint and black trim and are made of reinforced vinyl with hook-and-loop (Velcro) closures. They come in regular duty and heavy duty (rated for 5 years minimum service under normal conditions). The regular-duty models are also available with a viewing window so you can check the gauges without removing the cover (but honestly, you really should inspect your extinguishers completely each month, and that means removing the cover anyway).

Size	Dimensions	Typical extinguisher sizes*
Small	20" h x 11-1/2" w (508 x 292 mm)	Short 10 lb dry chemical and short 9 and 13 lb. Some Halon units. May also be used with 5 and 6 lb. extinguishers.
Medium	25" h x 16-1/2" w (635 x 419 mm)	Tall 10 and 20 lb. dry chemical, tall 13 lb. Halon, 17 and 20 lb. Halon, and 2.5 gallon water
Large	31" h x 16-1/2" w (787 x 419 mm)	15 and 20 lb. carbon dioxide.
*Extinguisher sizes are based on the amount of agent inside, not the overall weight of the charged extinguisher.

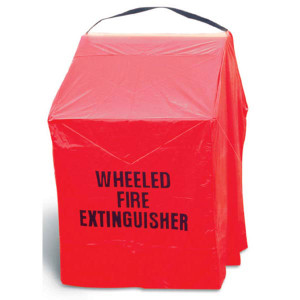

For wheeled extinguisher covers see item # 09364.

Application Note

The 2013 edition of NFPA 10, Standard for Portable Fire Extinguishers states "6.1.3.7 Fire extinguishers installed under conditions where they are subject to physical damage (e.g., from impact, vibration, the environment) shall be protected against damage."

If you are storing your extinguisher outdoors at facilities such as gas stations, fueling racks, on the outside of a vehicle, helicopter landing pad etc., you need a cabinet or cover for that extinguisher to be compliant with this NFPA standard which is incorporated by reference into various regulations and even insurance policies.
