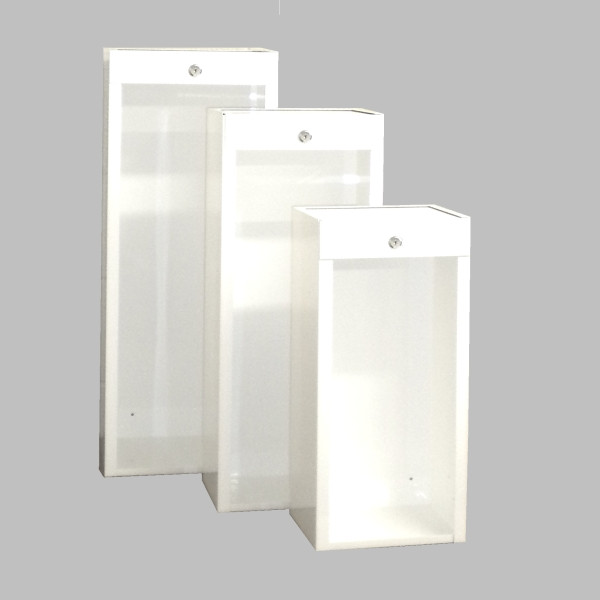

A photograph of three 09341 jl classic series surface mounted galvanized extinguisher cabinets, in small, medium, and large sizes.

JL Classic Series Galvanized Extinguisher Cabinets, Surface Mounted

Item #: 09341

* # and Size:

Quantity:

$130.00

Normal Availability: 1-3 business days

Product Description

These JL Industries Classic Series cabinets are made of 20 gauge galvanized steel with a bright white finish for rust resistance. The .060" thick top-loading acrylic front panel loads from the top, protects your extinguishers from the elements, and is easily breakable. Each cabinet comes with an identically keyed cylinder lock, the acrylic face plate, cylinder lock top, breaker bar with chain, and decals.

This unit is available in three sizes (dimensions shown are interior): SMALL AND LARGE ARE SOLD TWO PER SET. THE PURCHASE PRICE SHOWN IS FOR A PAIR OF CABINETS. The large version is sold individually.

Specifications	Small	Medium	Large
Item #	09341-S	09341-M	09341-L
JL Model #	9163Z30	9263Z30	9363Z30
# per Carton	2	2	1
Interior Width	8-1/2" (21.6 cm)	9-1/2" (24.1 cm)	10-1/2" (26.7 cm)
Interior Height	19-13/16" (50.3 cm)	25-3/4" (65.4 cm)	29-3/4" (75.6 cm)
Interior Depth	6-1/4" (15.9 cm)	6-1/4" (15.9 cm)	8-1/4" (30.0 cm)
Weight per Carton	16 lb (7.3 kg)	20 lb (9.1 kg)	18 lb (18.2 kg)

Replacement acrylic panels are sold as item # 09342. We have a selection of breakers available; see item #'s 09423, 09790, and 09791.
