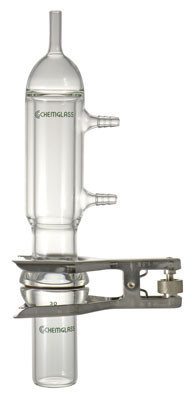

Sublimation Apparatus, Non-Vacuum

This 2-piece sublimer has an upper water-cooled condenser and a lower flat-bottom flask. The two components are connected by a grease-free O-ring assembly for ease of assembly and product collection while avoiding contamination. The condenser acts as a funnel when inverted, affording convenient and waste-free product collection. The complete apparatus includes the condenser, flask, CG-305 Viton O-ring and CG-150 stainless steel clamp. Available in 15 and 50 mL capacity.

The 15 mL unit has approximate dimensions of 210 mm high x 65 mm wide and has a #20 O-ring joint, a #214 O-ring size, and #35 clamp.

The 50 mL unit has approximate dimensions of 295 mm high x 80 mm wide and has a #30 O-ring joint, a #223 O-ring size, and #50 clamp.
