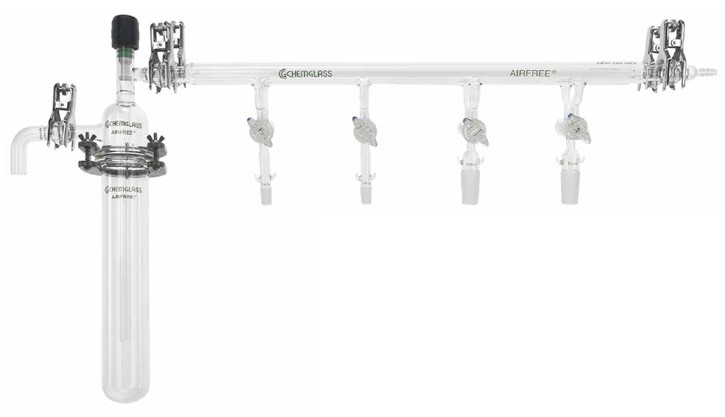

  • A photograph of a af-0452 dual line vacuum manifold, complete system, 4 ports.
  • An illustration of the side view of  the  af-0452 dual line vacuum manifold, complete system, 4 ports.
  • An illustration of the oblique view of  the  af-0452 dual line vacuum manifold, complete system, 4 ports.
  • An illustration of the front view of  the  af-0452 dual line vacuum manifold, complete system, 4 ports.
  • An illustration of the top view of  the  af-0452 dual line vacuum manifold, complete system, 4 ports.

Dual Line Vacuum Manifold, Complete System, 4 ports

Item #: AF-0452
Quantity:
$2,170.00

Normal Availability: 1-3 business days

Product Description

Flexible and compact, this 4-port line is constructed using 4 mm double oblique, hollow high vacuum greased stopcocks on all 4 ports. The ports are fitted with two 14/20 inner joints and two 24/40 inner joints and are 5 in center to center.  As a special option, you can order a version with #15 O-ring connections on the ports instead of the standard taper joints.  All four ends of the manifold have #15 o-ring joints, permitting the trap assembly to be attached to either the right or left side of the vacuum bank.

This manifold is supplied with two AF-0210-01 #15 stoppers and three AF-0070-05 #15 O-ring joint to serrated hose adapters. The trap assembly features a 0-12 mm Chem-Cap® shutoff valve and 57 mm O-ring flat flange and is supplied with a CG-139-02 clamp, a CG-305-331 #331 Viton O-ring, and both a straight AF-0070-03 #15 O-ring joint to 3/4" tubing adapter as well as bent AF-0070-20 #15 O-ring to 3/4" tubing adapter for connection to flexible vacuum tubing (not supplied).

The trap body is 57 mm o.d. x 300 mm long and each manifold diameter is 1". The overall dimensions of the system are approx. 30 in wide x 18 in high. Supplied complete with five CG-150-05 #28 stainless steel clamps, and five CG-305-116 #116 Viton O-rings.

You will need to supply a vacuum pump with appropriate tubing for connection to the manifold (items we do not currently sell, sorry).  See item #SE-1593 for Dewar flasks.

International Customers - Because of the fragile nature of this line, it must be packaged in wooden crates for international shipment; the cost to package and ship this overseas can exceed the cost of the line itself. Therefore, we recommend that international customers consider one of our other complete manifold systems such as the AF-0060-81 or AF-0061-81 which can be shipped much more affordably.
